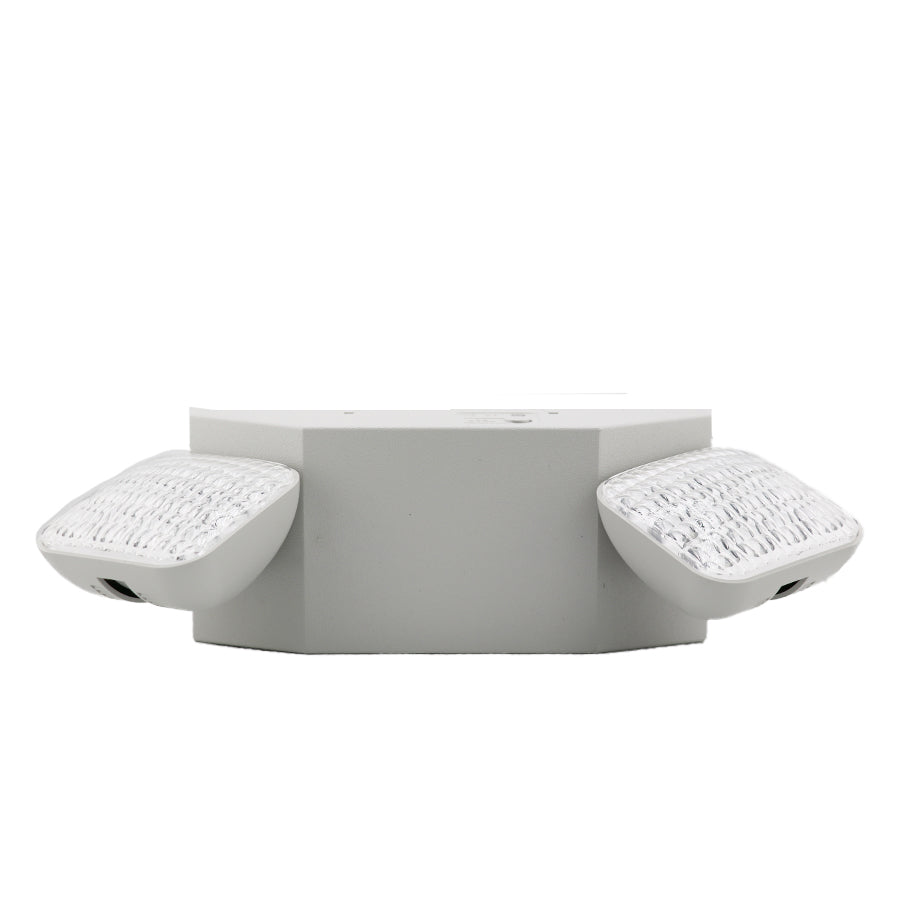

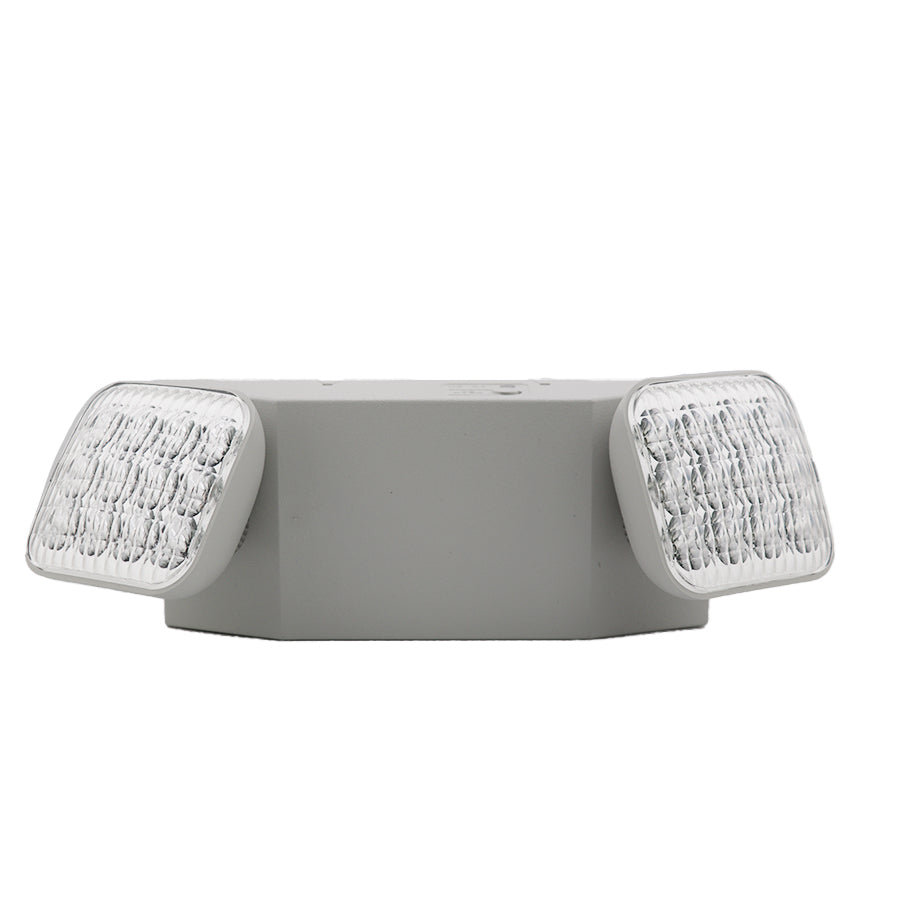

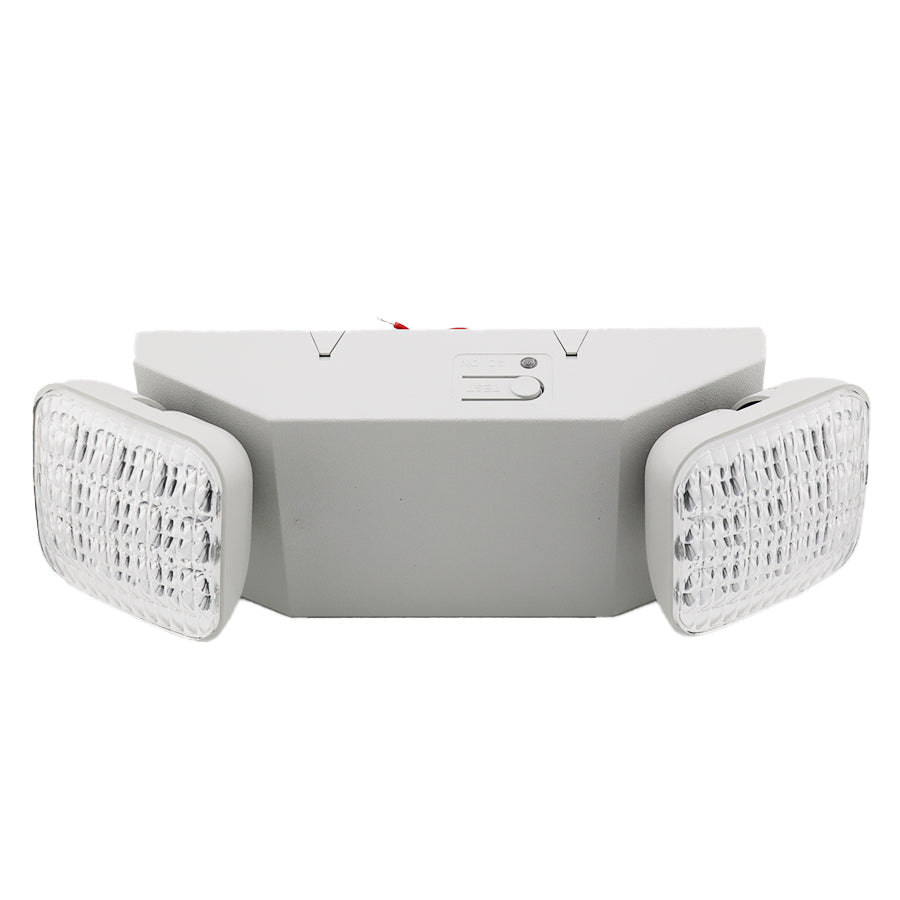

The TEM is a thermoplastic LED emergency unit engineered for fast installs, dependable egress lighting, and low maintenance. Two ultra-bright, adjustable LED heads (1.0W per head; 8 LEDs × 0.125W) with chrome-plated reflectors and clear lenses maximize light where you need it. A dual-voltage 120/277V input, charge/status LED, and push-to-test switch simplify code-required checks. The maintenance-free 3.6V NiCd battery and solid-state transfer provide 90 minutes of emergency illumination with 24-hour recharge. The injection-molded 5VA flame-retardant, high-impact thermoplastic housing (white or black) keeps weight down while resisting abuse. Universal back-plate knockouts support wall or ceiling mounting and conduit entry for flexible installs. It’s UL924 listed for damp locations (0°C–50°C), compliant with NFPA 101/NEC/OSHA, CEC Title 20.
Key features
-

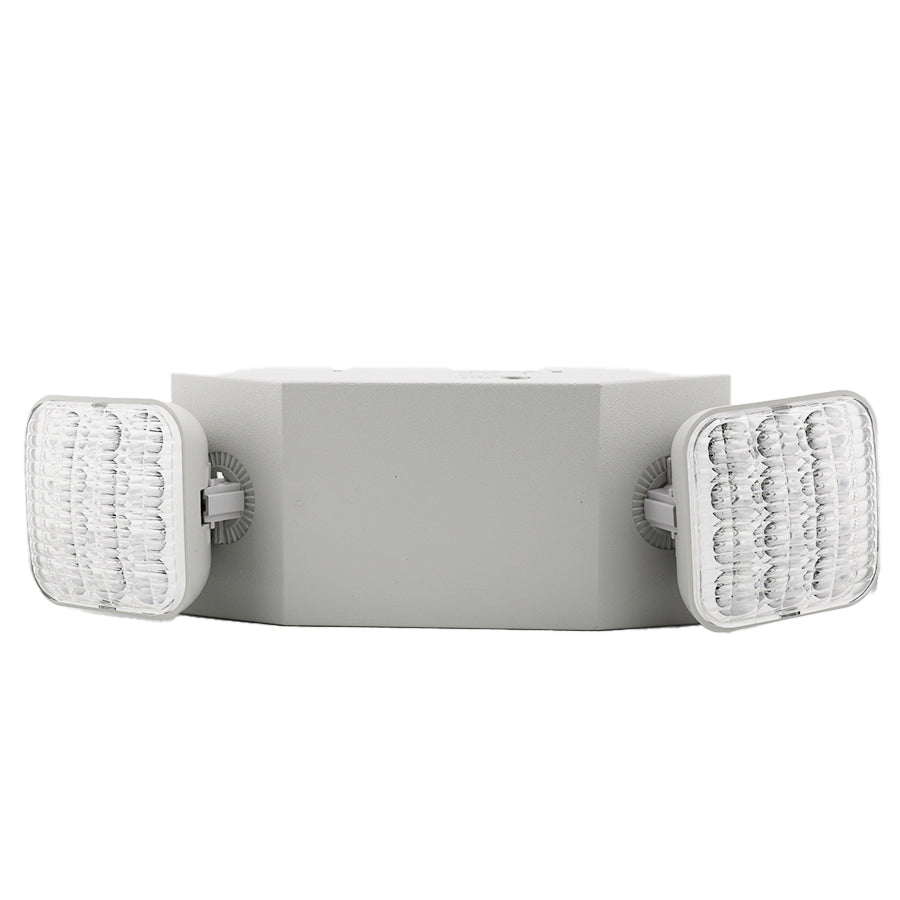

Two adjustable LED heads, 1.0W per head; metallized reflectors and clear lenses for optimal distribution.
-

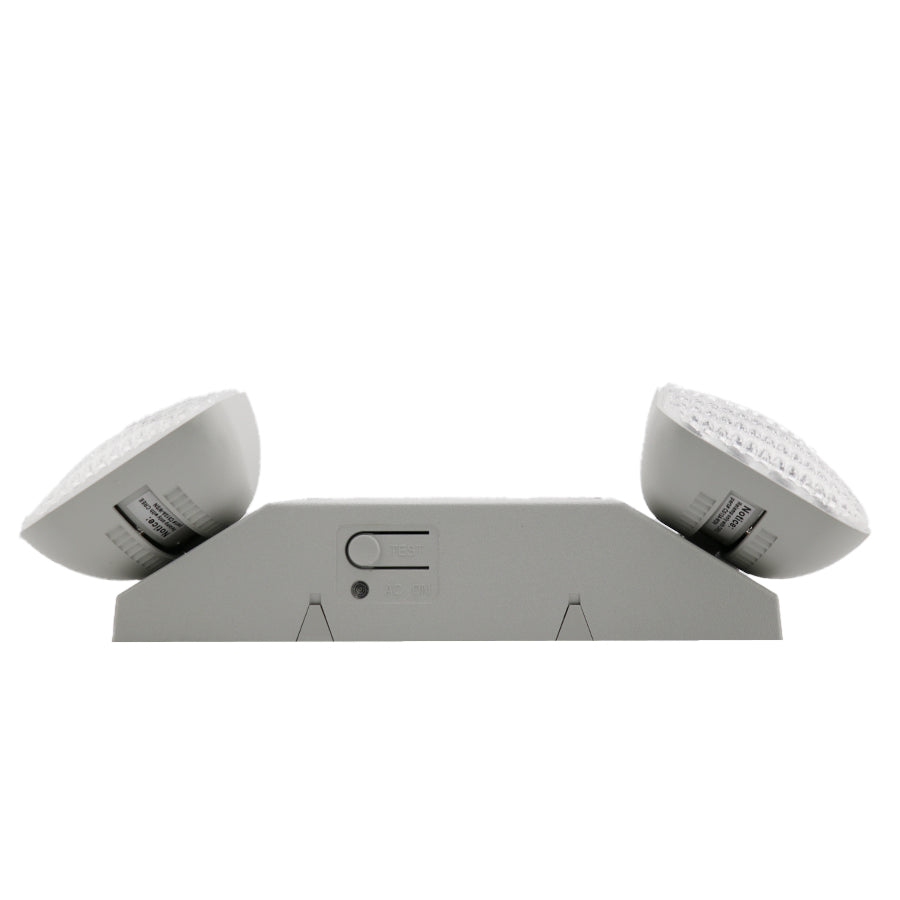

Dual 120/277V input; charge/status LED and push-to-test for code compliance.
-
3.6V NiCd battery; 90-minute emergency runtime; 24-hour recharge; solid-state transfer.
-
5VA flame-retardant, high-impact thermoplastic housing (white or black).
-

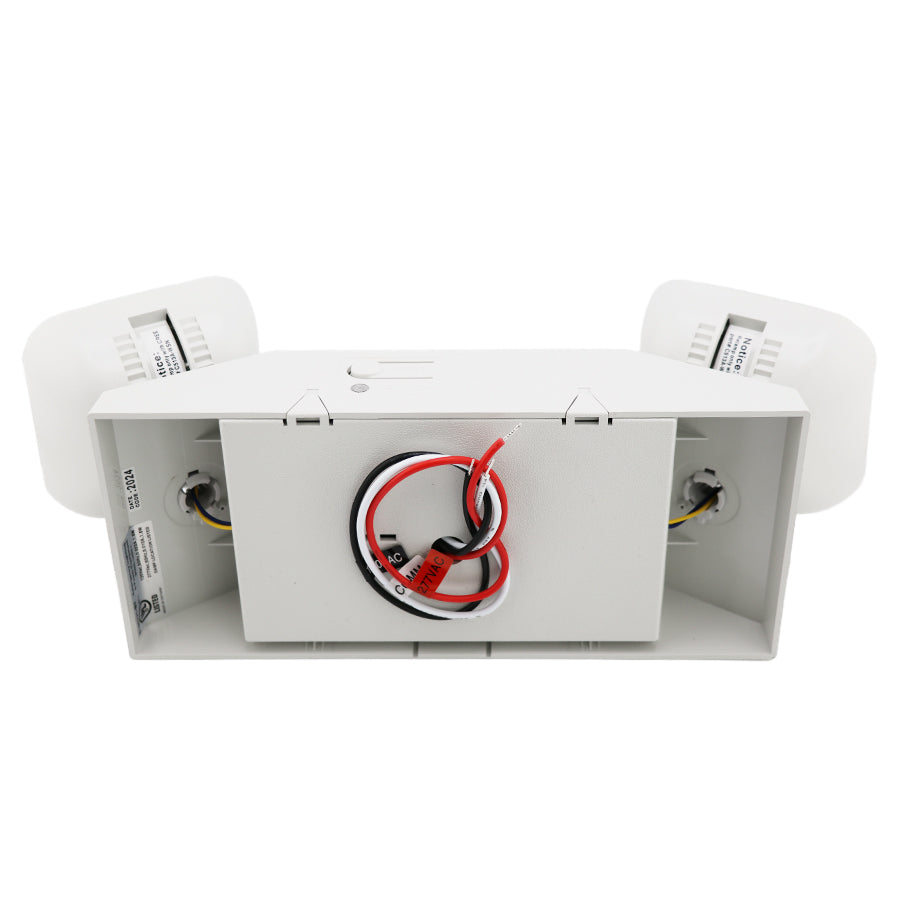

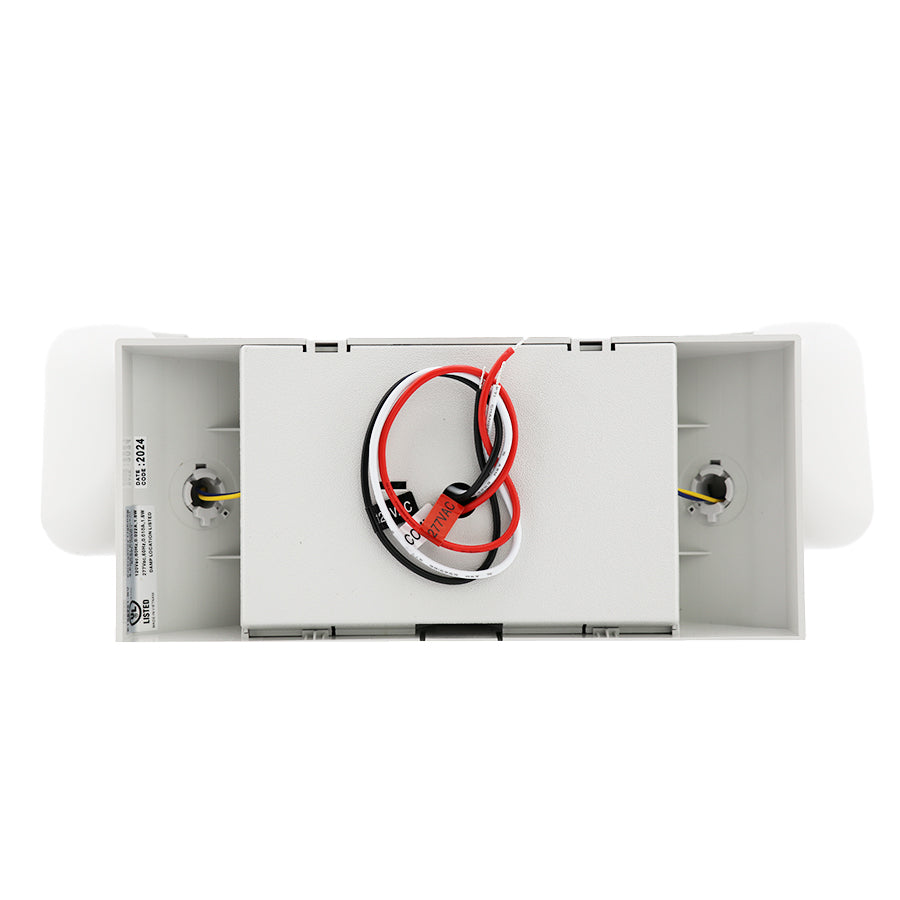

Wall or ceiling surface mount; universal back-plate knockouts; conduit knockout.
-
Listings/ratings: UL924, damp location (0°C–50°C), NFPA 101, NEC, OSHA.
