Commercial light pole spoke brackets for mounting two, three or four LED area lights or flood lights at the top of a single pole. Our compact steel spoke brackets slip onto a standard 2-3/8" vertical pole tenon and provide 2-3/8" O.D. horizontal tenons for slip fitter fixtures. Choose from 180°, 120° and 90° configurations, all in a bronze finish.
Spoke Bracket Configurations
- 180° dual: Two fixtures back to back, for poles between two rows of parking or along drive lanes.

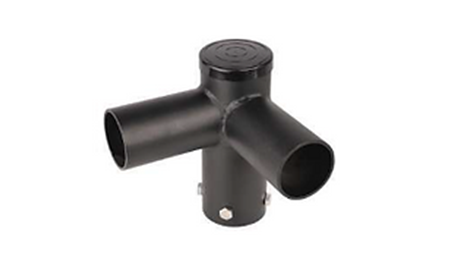

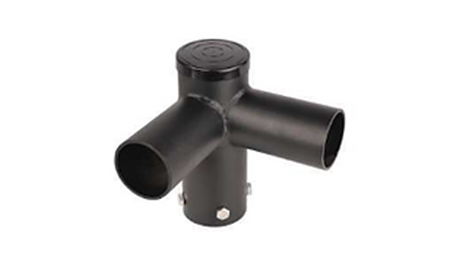

- 90° dual: Two fixtures at a right angle, for poles at the corner of a lot or building.
- 90° triple: Three fixtures in a T layout, for poles along the edge of a lot that need light in three directions.
- 120° triple: Three fixtures evenly spaced around the pole, for wide coverage from the middle of a lot.
- 90° quad: Four fixtures at right angles, for full coverage in every direction from a center pole.
Spoke Brackets vs Bullhorns
Spoke brackets hold fixtures tight to the pole top on short tenons, giving a compact look and a low added EPA (wind load). Bullhorn brackets extend fixtures outward on longer arms for more separation between heads. Choose spokes for a clean, close-mounted layout; choose bullhorns when larger fixtures need more clearance.
What to Confirm Before Ordering
- Pole top: Spoke brackets slip over a 2-3/8" vertical tenon. Use a tenon adapter if your pole top is a different size.
- Fixture fit: Fixtures need a 2-3/8" slip fitter to mount on the spoke tenons.
- Fixture clearance: Because spokes mount fixtures close together, confirm your fixtures fit side by side at the bracket's angle without touching.
- EPA rating: Add the EPA of the bracket and all fixtures together and make sure the pole is rated for the total.
- Coverage directions: Pick the configuration that aims light where it is needed and away from property lines.
Where Spoke Brackets Are Used
- Parking lots needing multi-directional coverage
- Drive lanes, intersections and site entrances
- Large commercial properties and campuses
- Retrofits adding fixtures to existing poles
Complete Your Pole Lighting
Pair spoke brackets with LED parking lot lights and light poles, or browse all brackets and adapters.
Need help choosing a bracket? Share your pole details, fixture type and coverage directions, and our team will help narrow the best option. Contact us or call 321-203-4869.
