Description
The EX is a compact, thermoplastic LED exit sign designed for fast installs and dependable code compliance. It ships field-selectable Red/Green letters, with a white 5VA flame-retardant, high-impact housing and universal single/double-face configuration. A dual-voltage 120/277V input, charge/status LED and push-to-test simplify inspections, while a maintenance-free 1.2V NiCd battery and solid-state transfer provide the required 90 minutes of emergency illumination with 24-hour recharge. The curved-face design includes EZ snap-out chevrons to set arrow directions on site. Install top or end mount with the included EZ-snap canopy, or use the universal back-plate knockouts for wall mount. Listed to UL924, damp location (0°C–50°C), and compliant with NFPA 101/NEC/OSHA; CEC Title 20 certified.
Key features
-

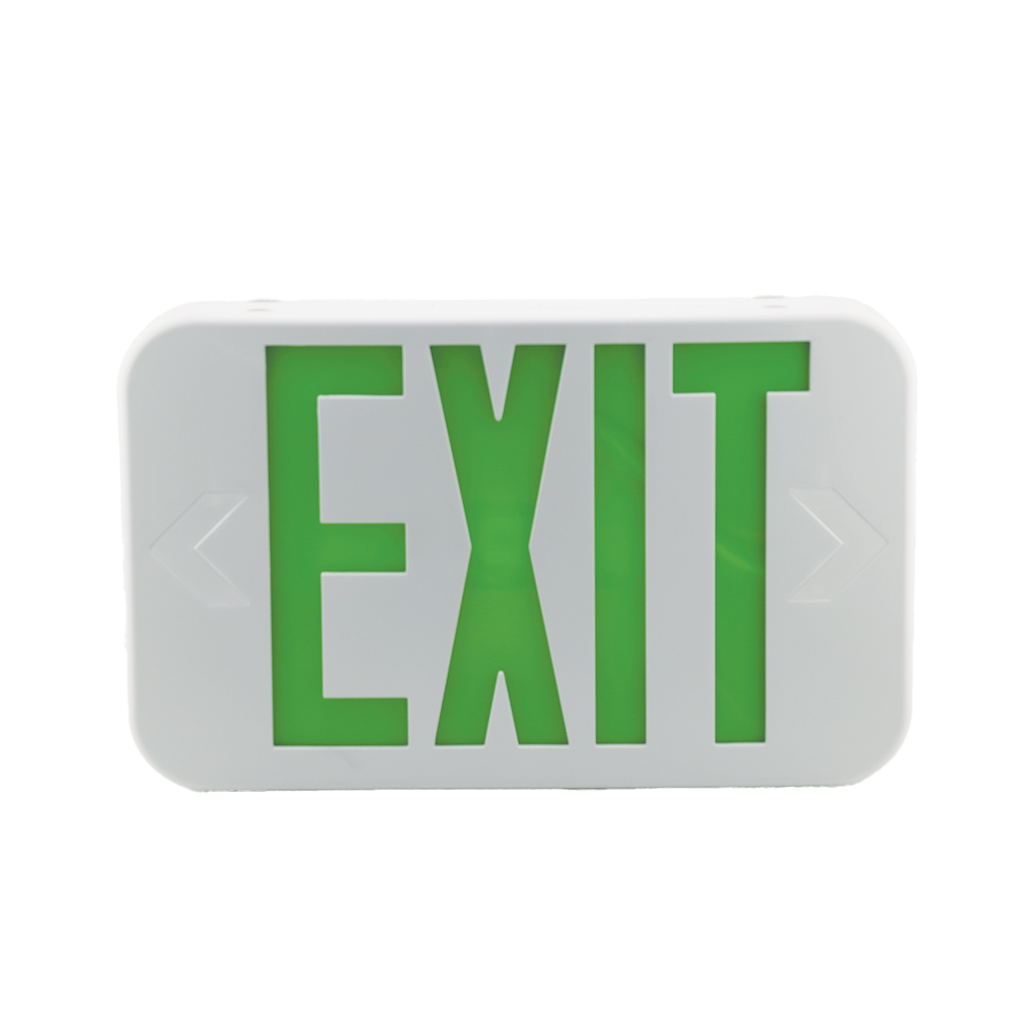

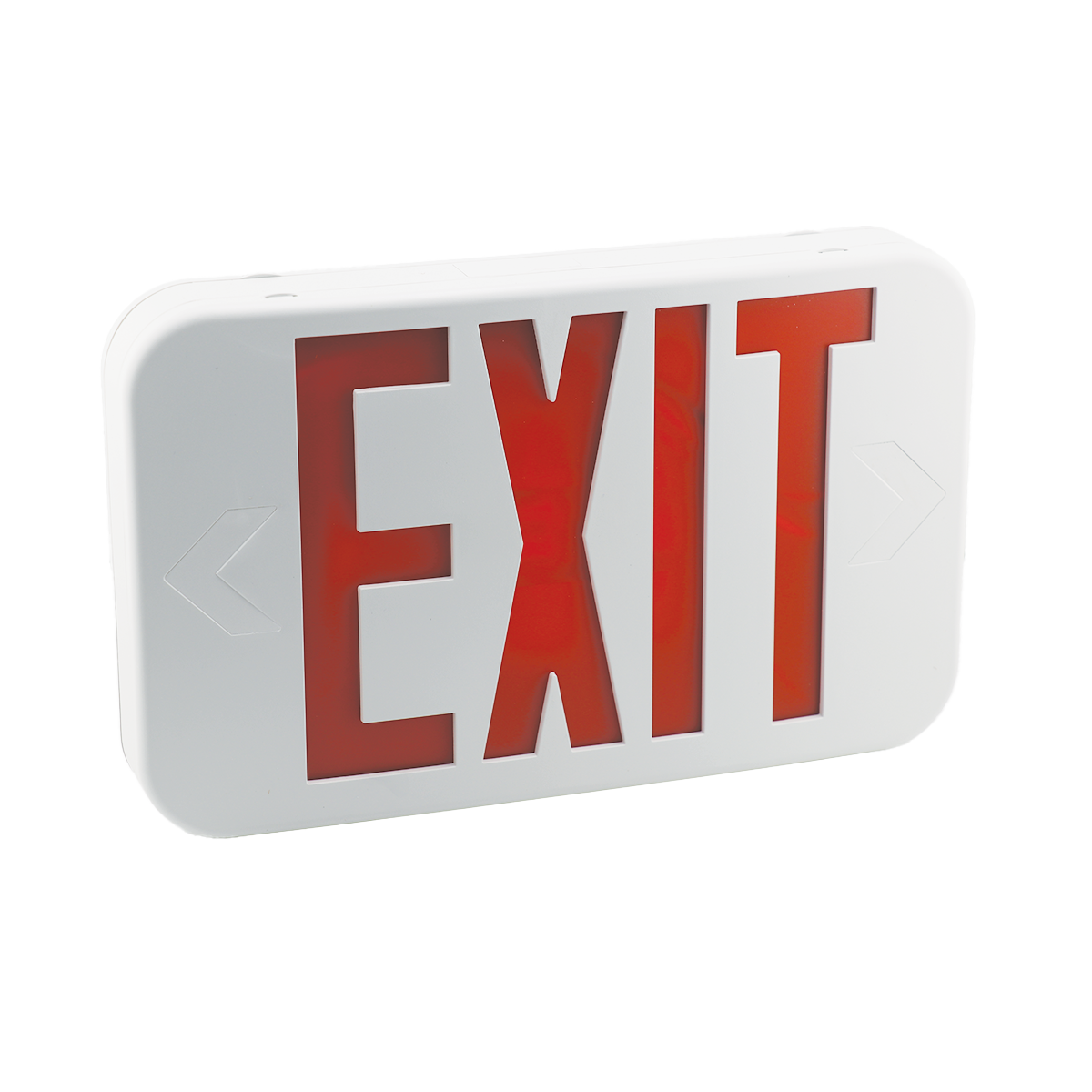

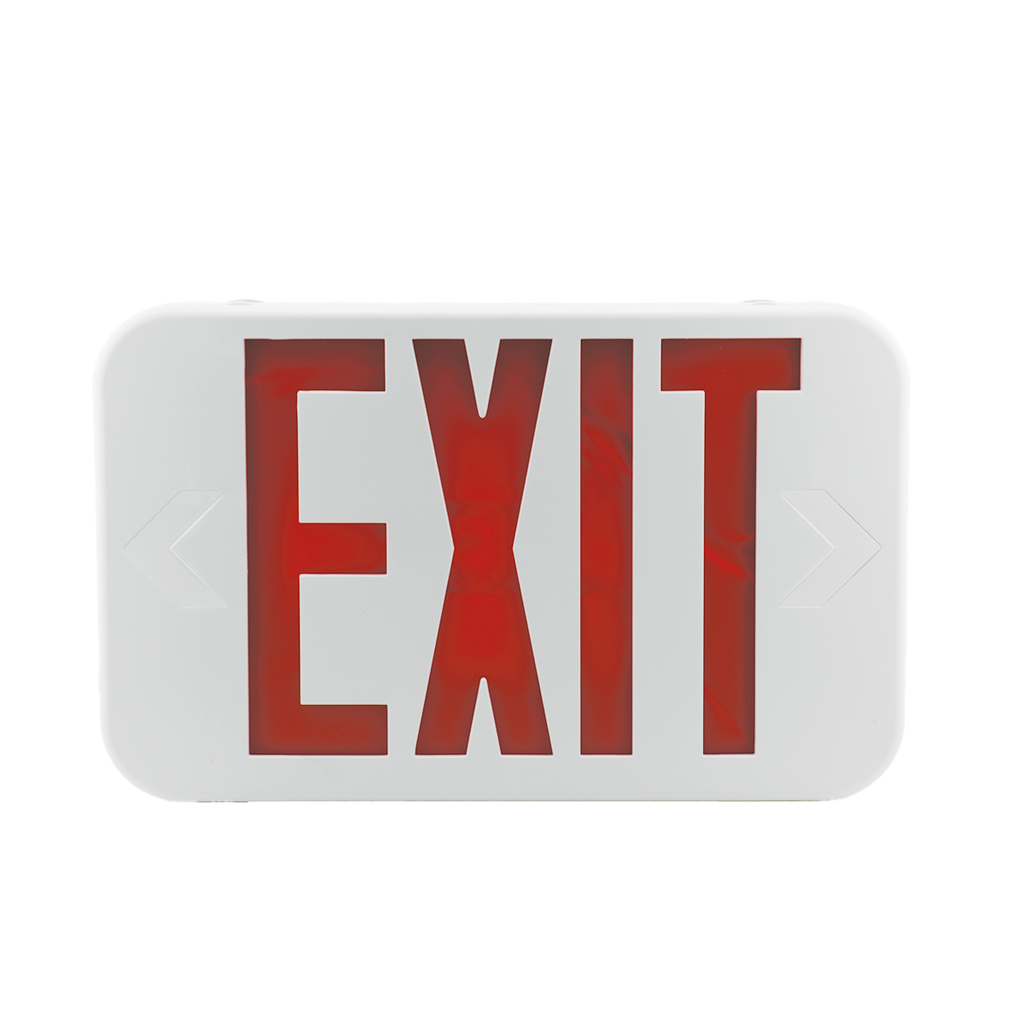

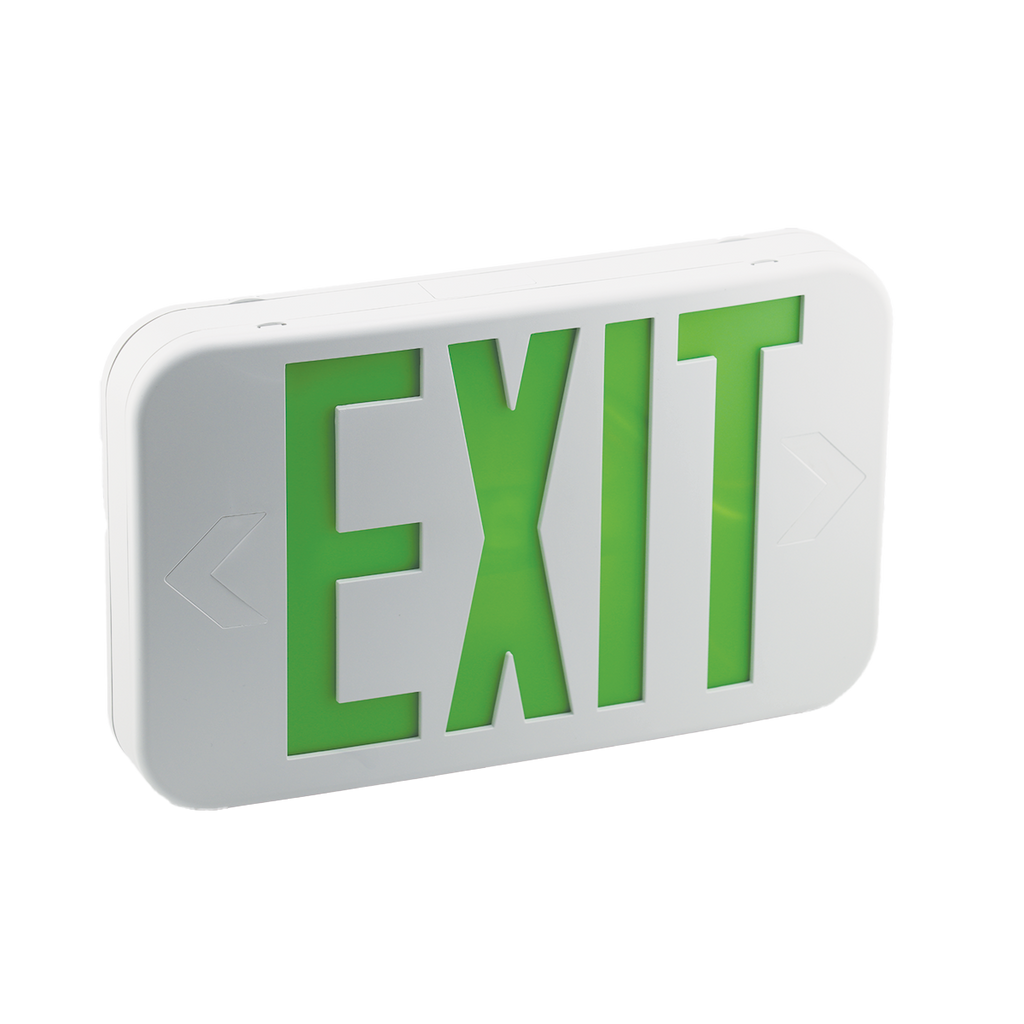

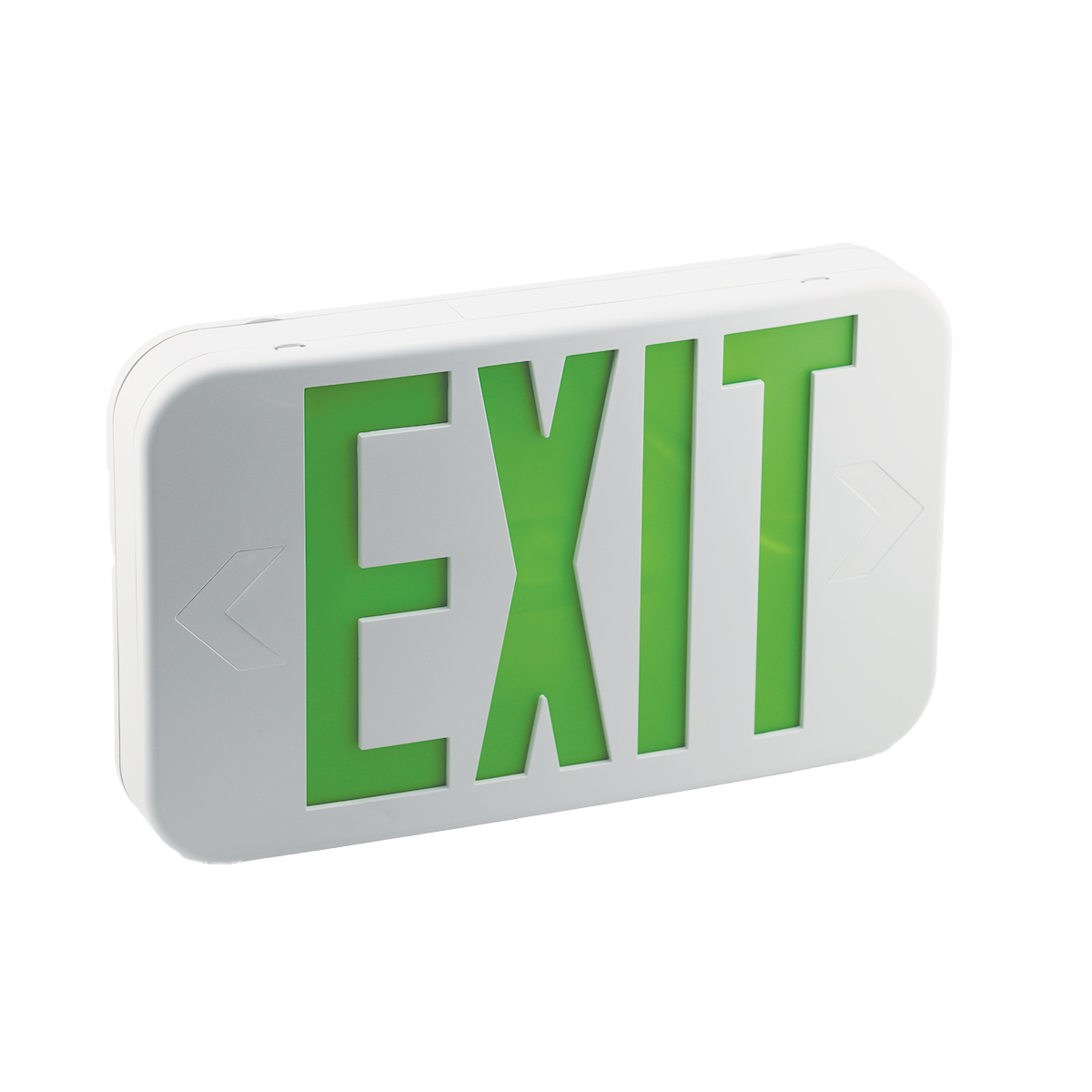

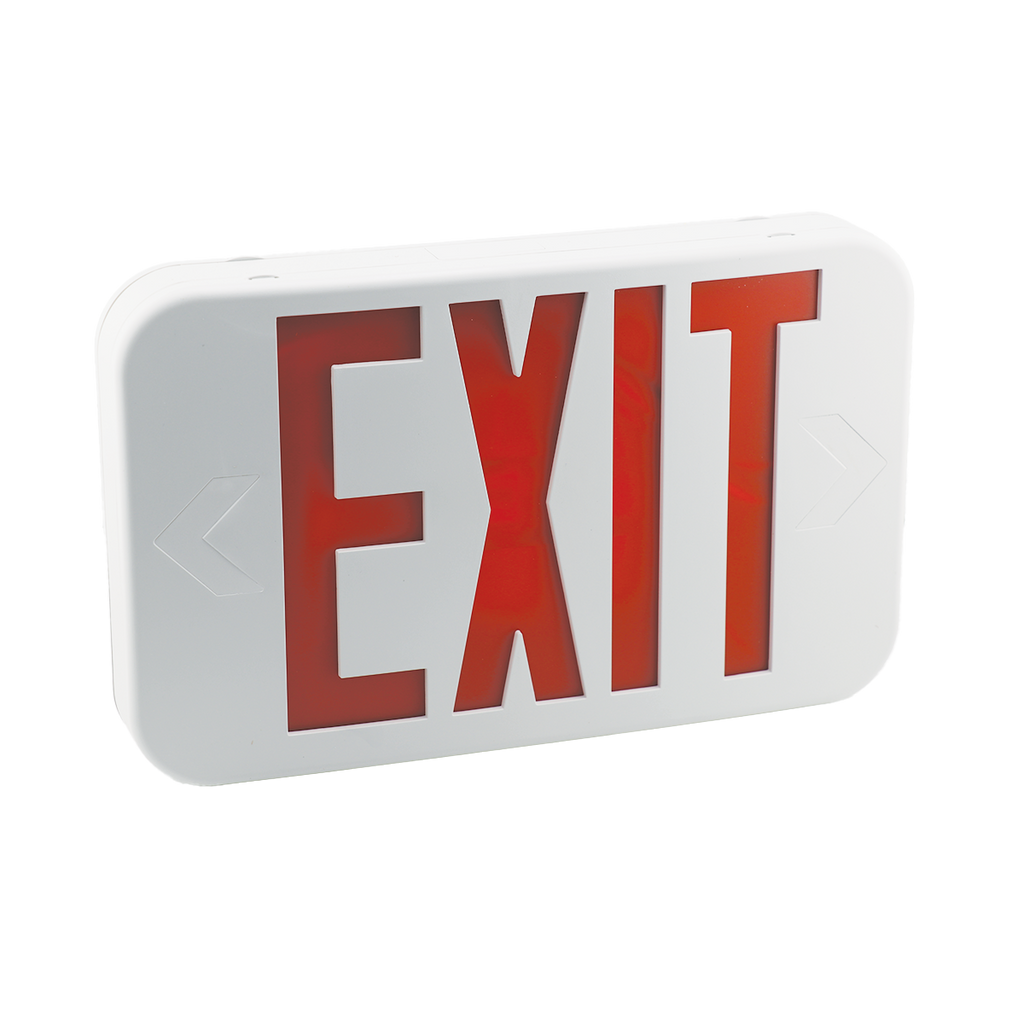

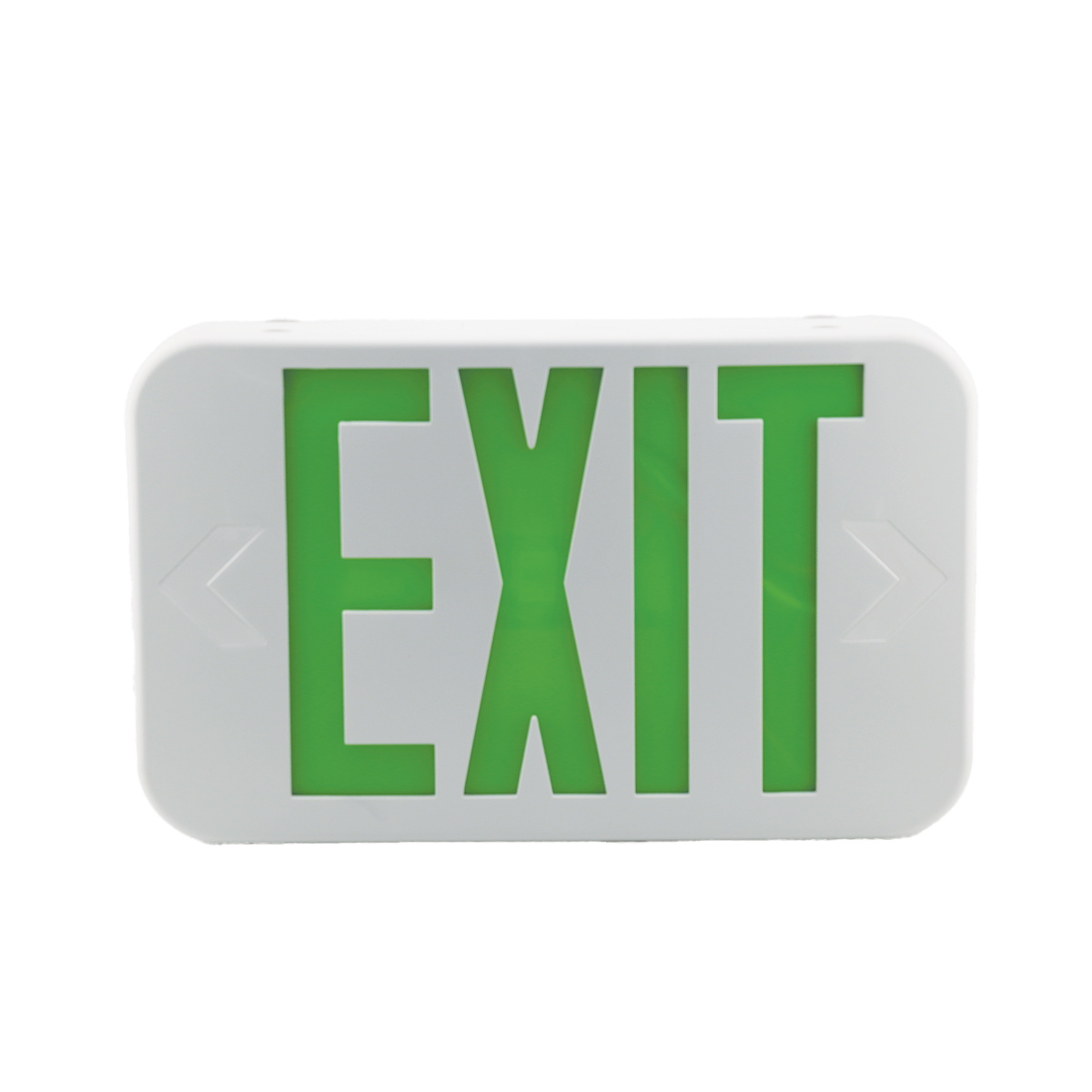

Field-selectable Red/Green LED letters; white housing; universal single/double-face.
-
Dual 120/277V input with charge indicator LED and push-to-test switch.
-
1.2V NiCd battery; 90-minute emergency runtime; 24-hour recharge; solid-state transfer.
-
5VA flame-retardant, high-impact thermoplastic; curved face with EZ snap-out chevrons.
-
EZ-snap canopy for top/end mount; universal back-plate knockouts for wall mount.
-
Listings/compliance: UL924, damp location (0°C–50°C), NFPA 101, NEC, OSHA; CEC Title 20.
