Description
The SEM is a reduced-profile, thermoplastic LED emergency unit designed for fast installs and reliable code-compliant egress lighting. Two ultra-bright, adjustable white LED heads (1.5W per head) can achieve up to 30-ft center-to-center spacing on a 3-ft path at 10-ft mounting height, helping you cover corridors and open areas efficiently. The unit runs on dual 120/277V, includes a bi-color status LED and push-to-test for inspections, and uses a 3.6V NiCd battery to deliver the required 90 minutes of emergency illumination with 24-hour recharge. A 5VA flame-retardant, high-impact thermoplastic housing white keeps weight low and durability high. Universal back-plate knockouts support wall or ceiling mounting and conduit feed applications. Listed to UL924, damp-location (0°C–50°C), compliant with NFPA 101/NEC/OSHA, CEC Title 20, and backed by a 5-year warranty on electronics/housing (battery prorated 5 years).
Key features
-

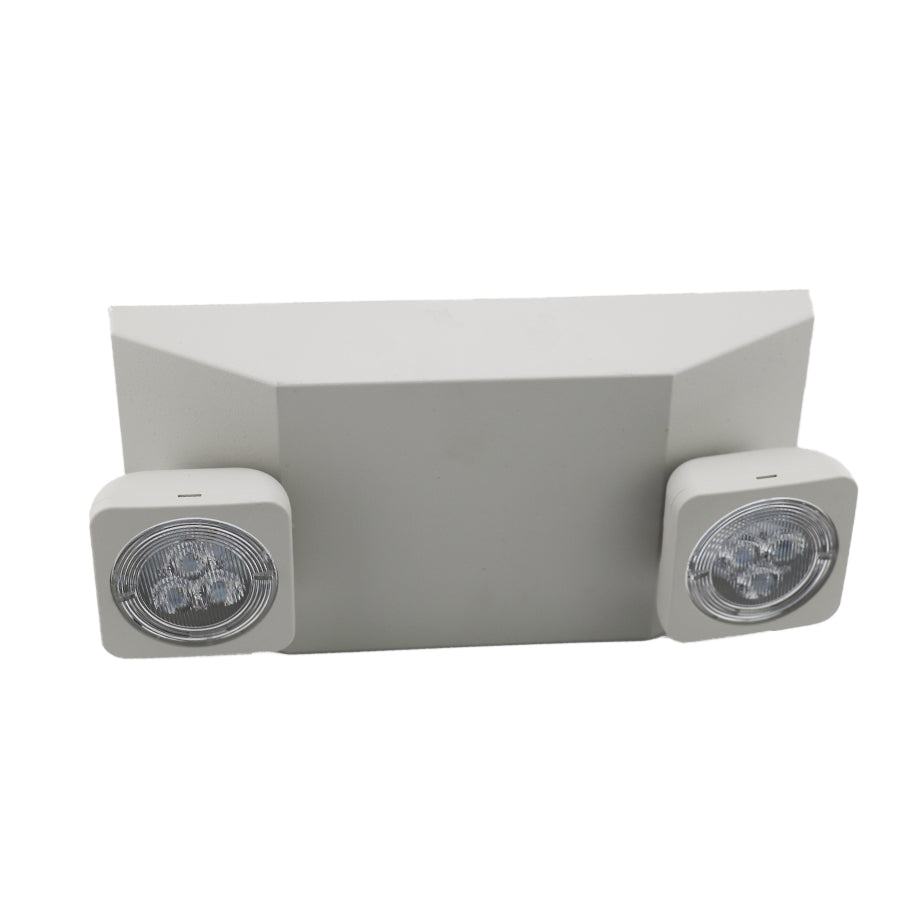

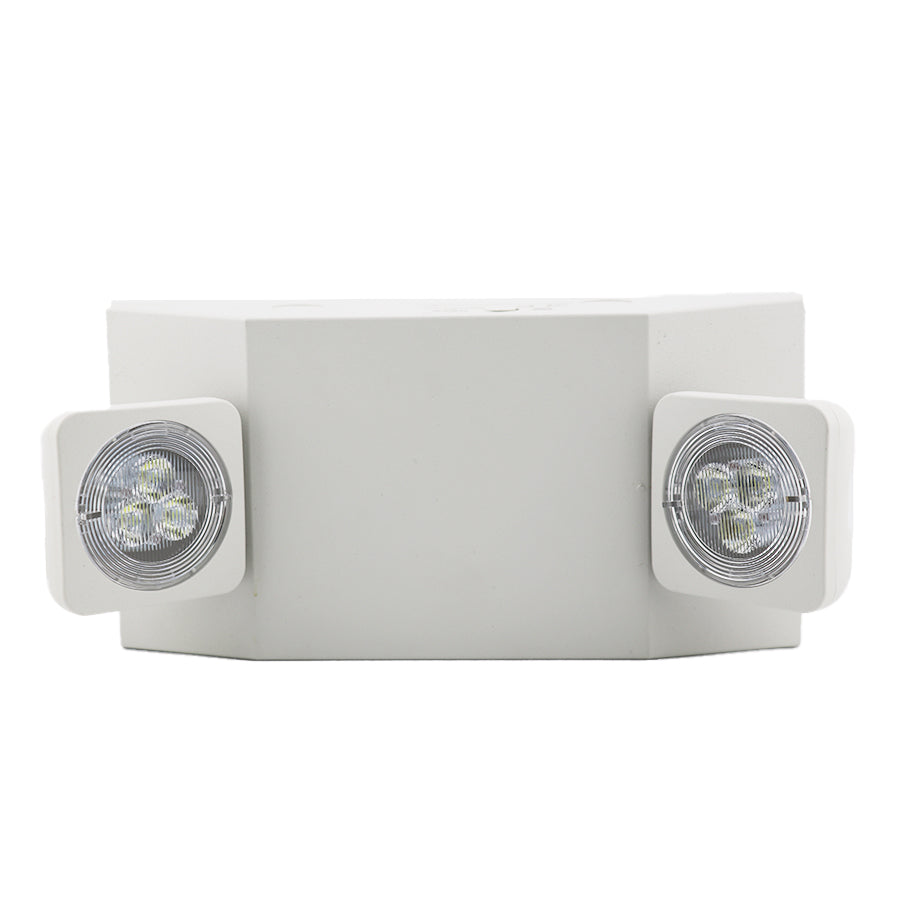

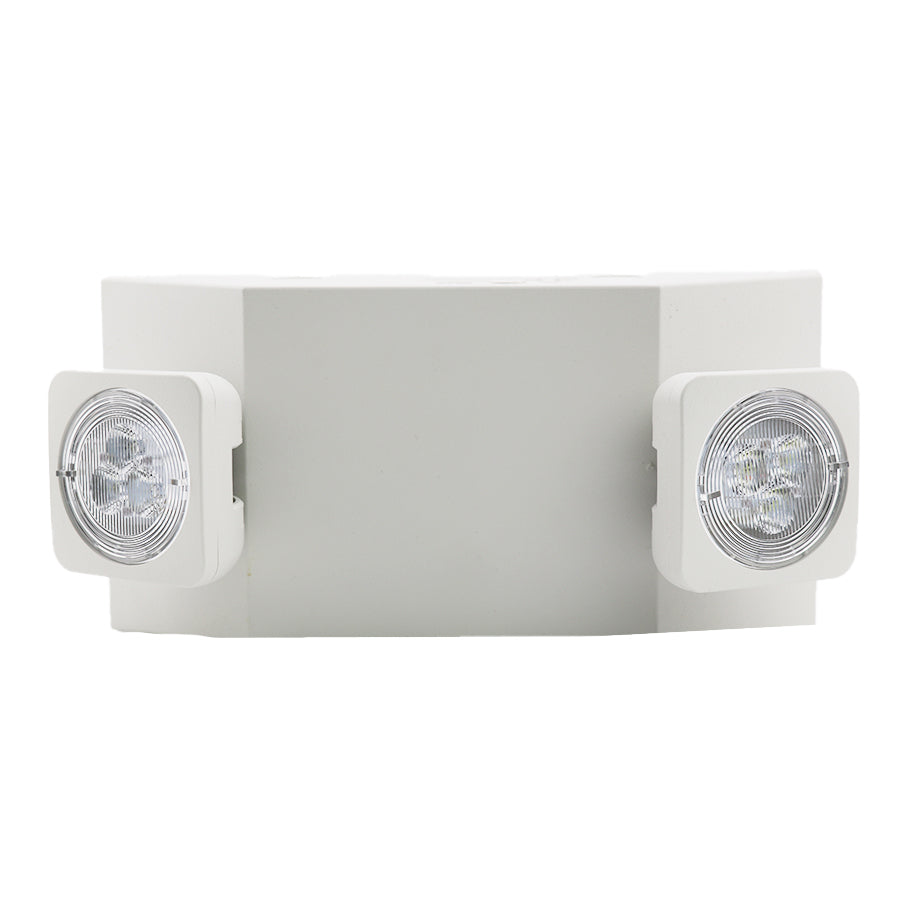

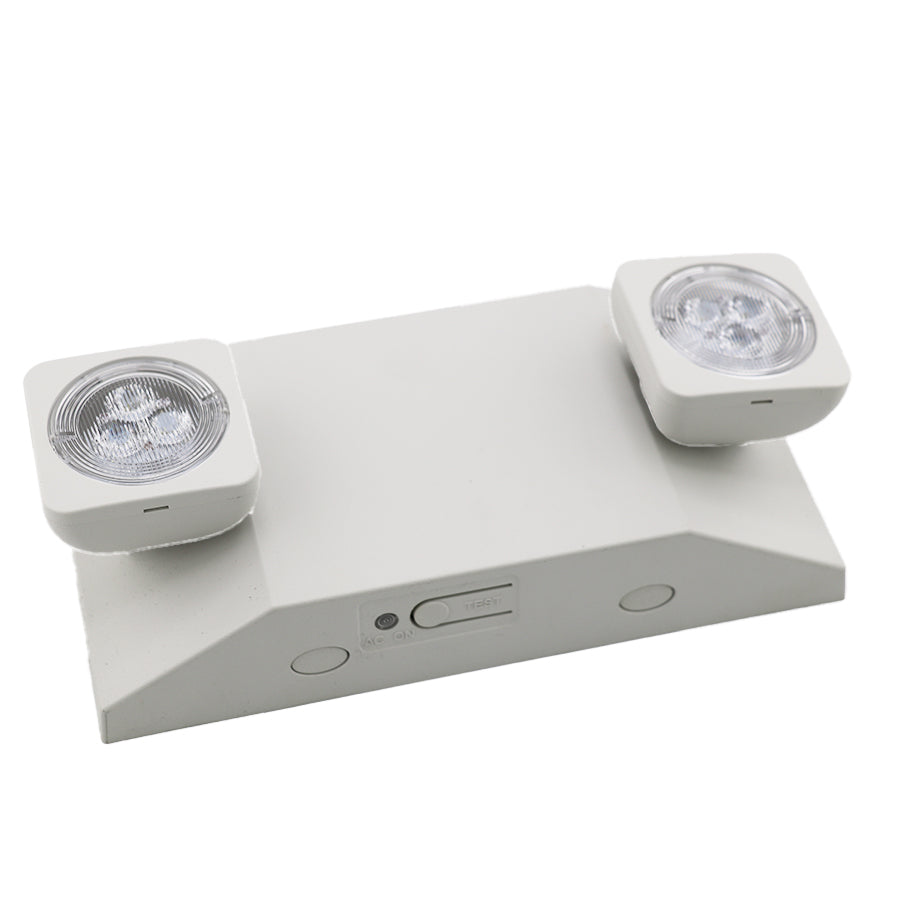

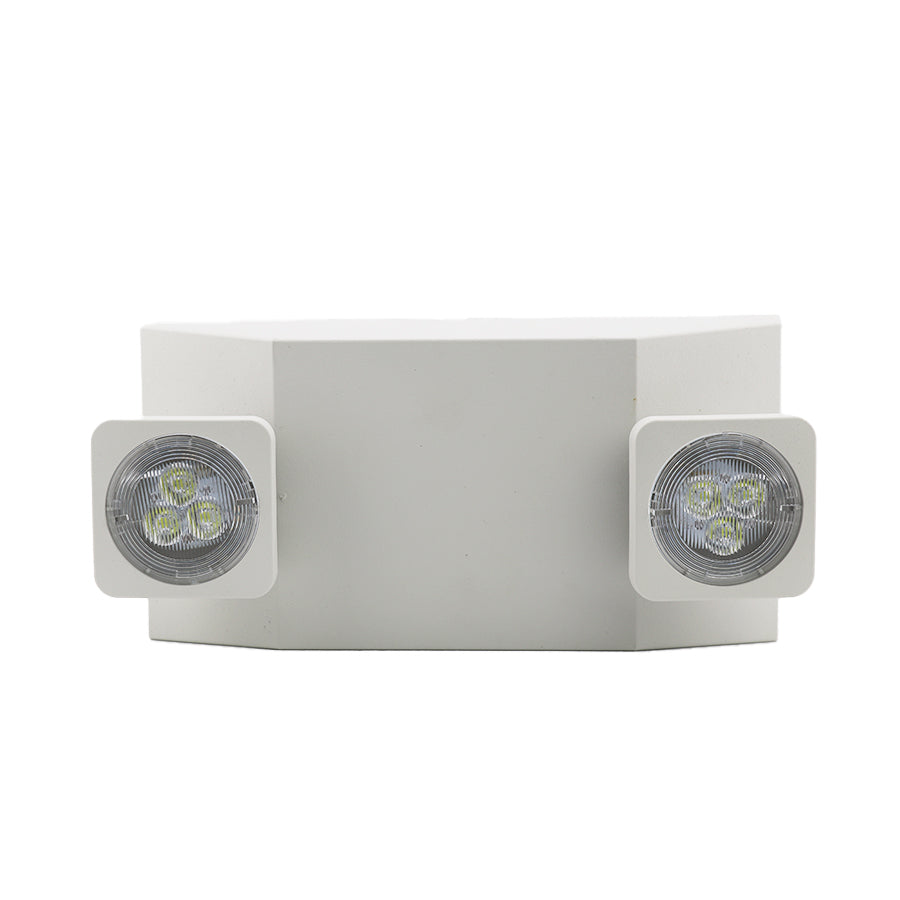

Two adjustable LED heads, 1.5W per head; up to 30-ft CTC on 3-ft path at 10-ft mount.
-

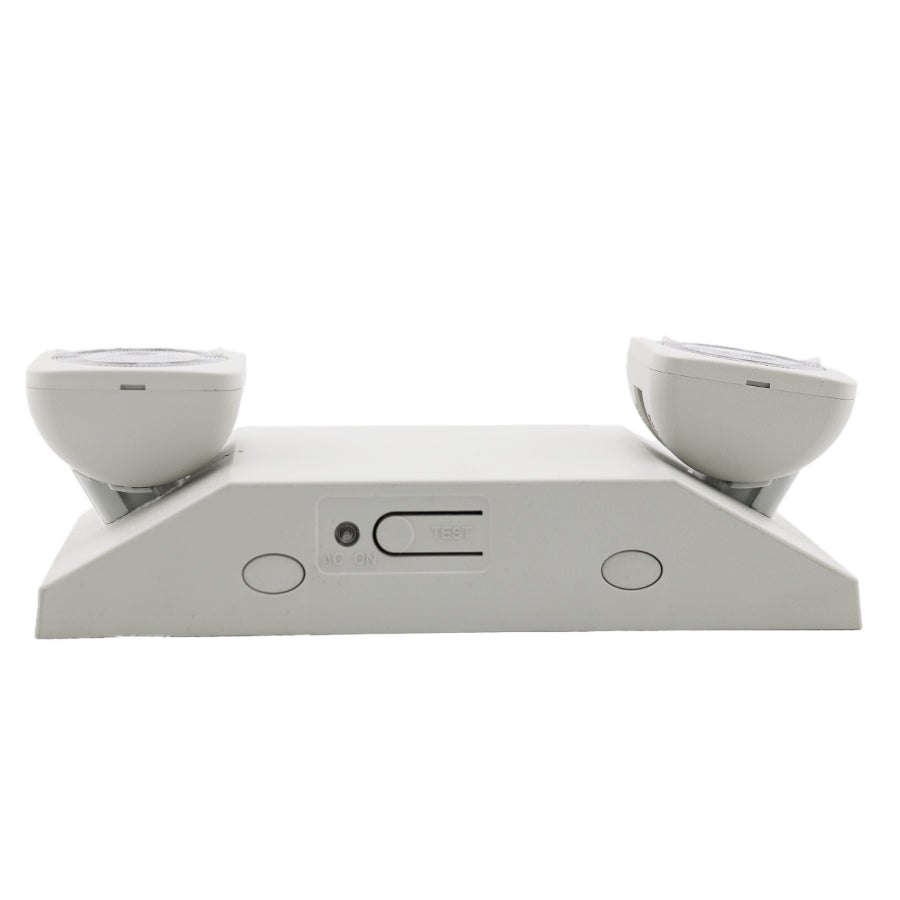

Dual 120/277V input; bi-color status LED (green=normal, red=check); push-to-test.
-
3.6V NiCd battery; 90-minute emergency runtime; 24-hour recharge.
-
5VA flame-retardant, high-impact thermoplastic housing (white or black).
-

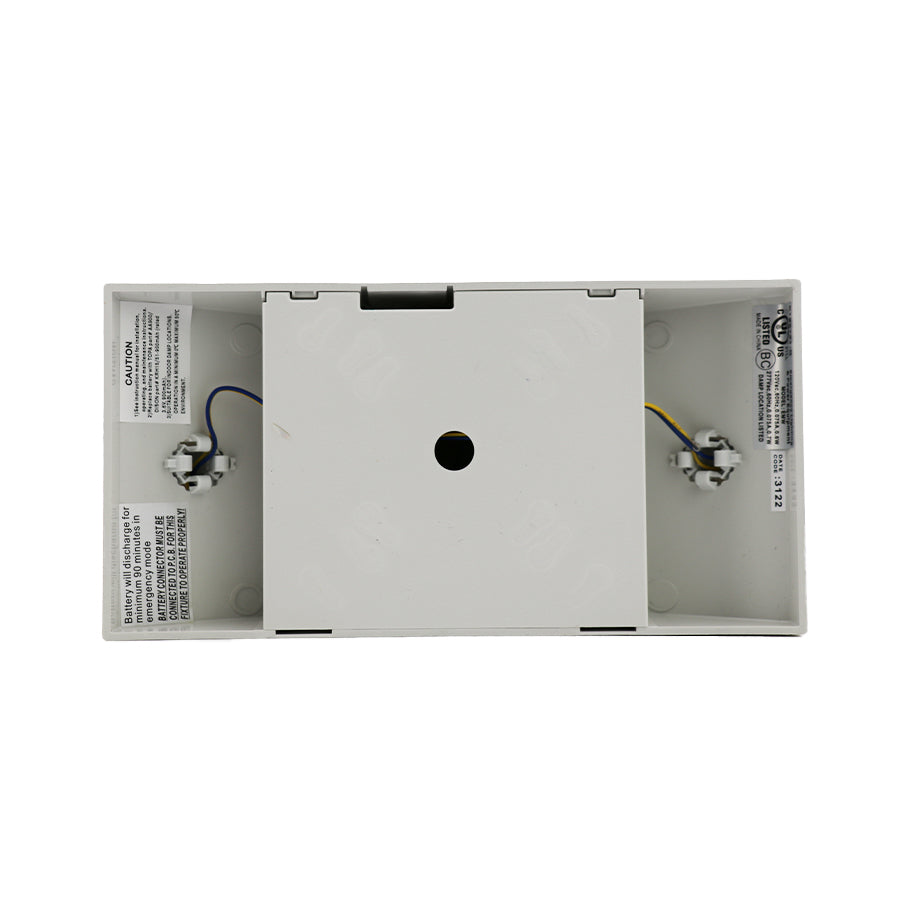

Wall or ceiling surface mount; universal back-plate K/Os; conduit knockout provided.
-
Listings/ratings: UL924, damp location (0°C–50°C), NFPA 101, NEC, OSHA; CEC Title 20.
