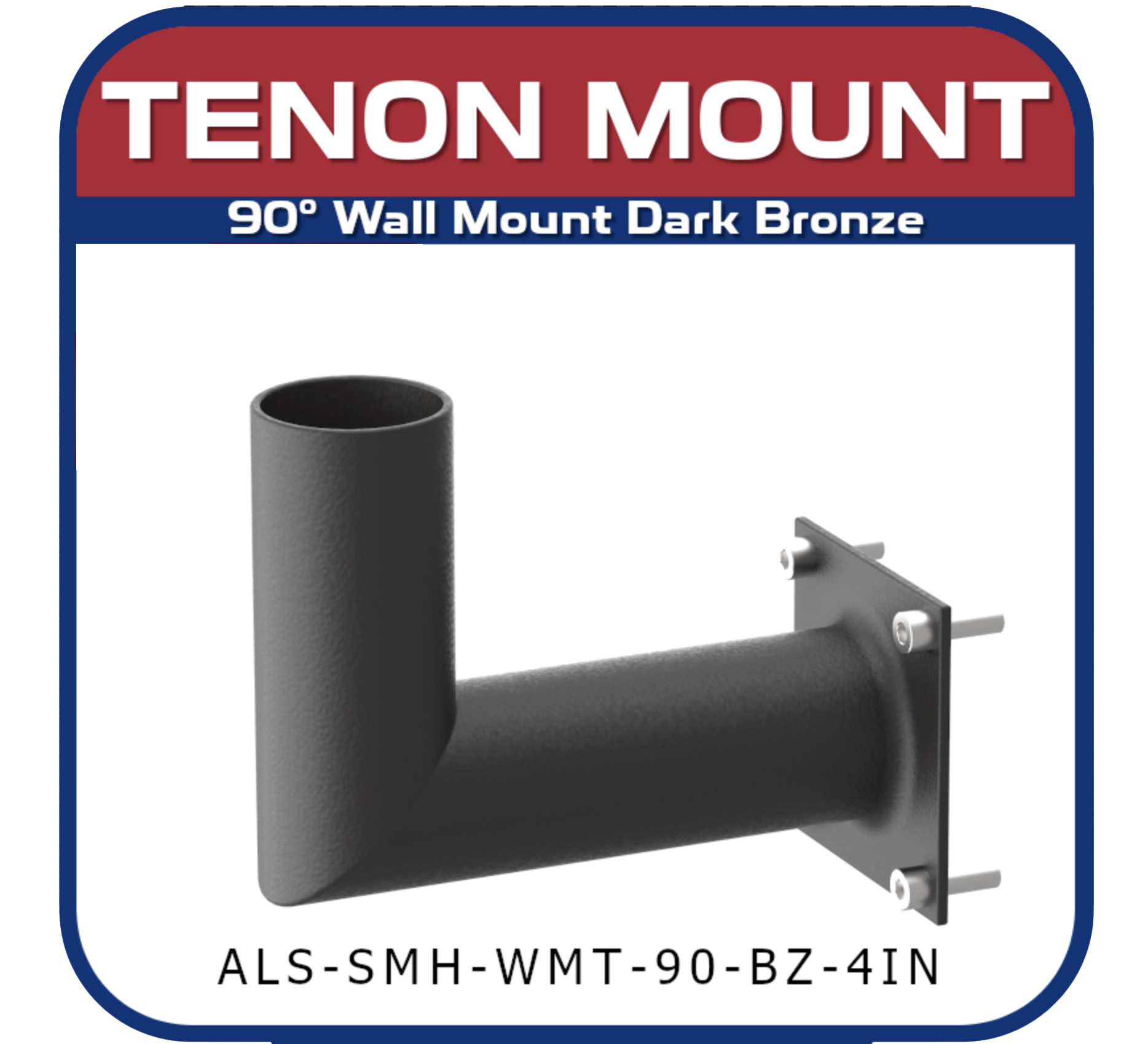

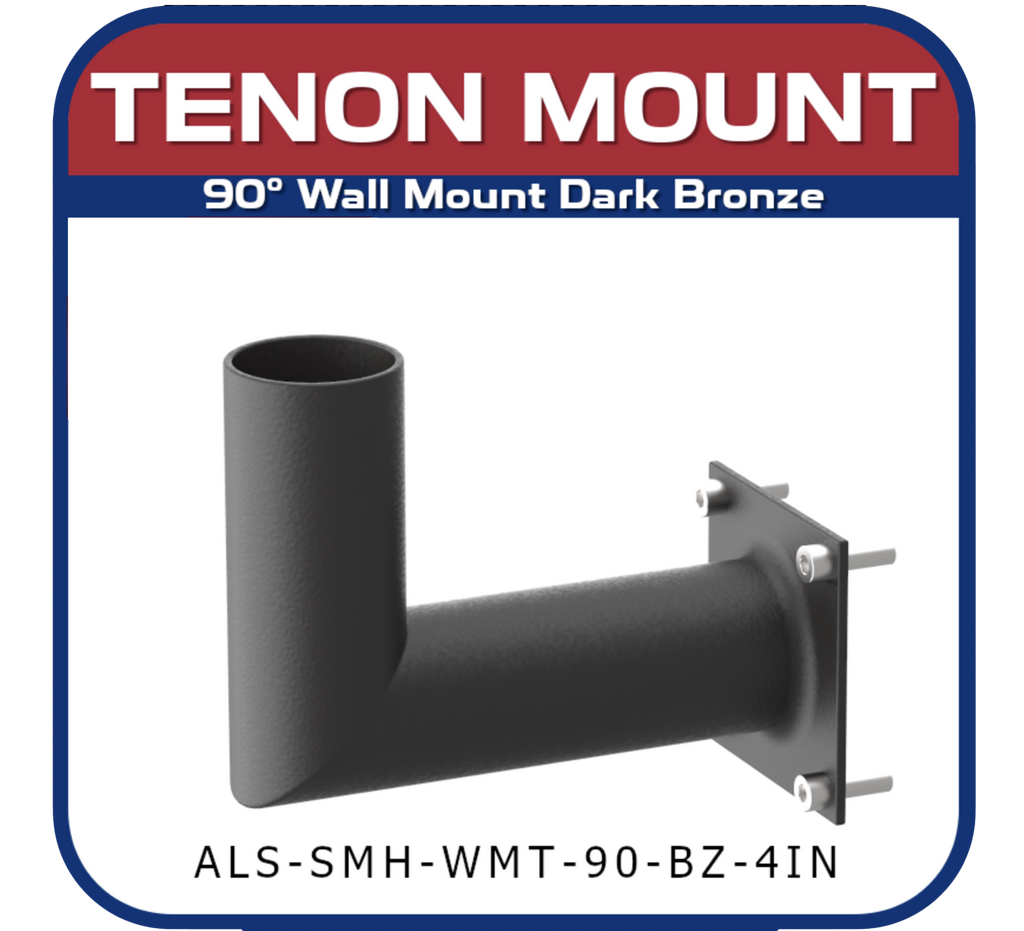

90° Wall Mount Tenon 4" Plate

American Lighting SystemsSKU: SMH-WMT-90-4IN

Sale price$34.00
bill icon
Same Day Quotes
return-box-icon
30 Day Returns
delivery icon
Free Shipping On $500
warranty-certificate-icon
5-Year Warranty
quality products icon
Certified Products
bill icon
Same Day Quotes
return-box-icon
30 Day Returns
delivery icon
Free Shipping On $500
warranty-certificate-icon
5-Year Warranty
quality products icon
Certified Products
description-svgrepo-com Description
setting-svgrepo-com Specifications
about-faq-help-question-svgrepo-com FAQ
It lets you mount an LED area light or flood light on a building wall, flat surface or the side of a pole instead of on top of a light pole. It is commonly used for perimeter, loading dock and building-side lighting.
Any LED area light or flood light with a 2-3/8" slip fitter, including our LED parking lot lights and flood lights. Every bracket provides a 2-3/8" O.D. tenon that the fixture slips over.
Choose the slip fitter wall mount with 4" x 4" base to project a fixture straight out from a wall. Choose a 90° wall mount tenon (4" or 7" plate) when you need a tenon that runs parallel to the wall, pointing up for pole-top style mounting or sideways for side-throw and corner mounting. Choose the flat surface mount for beams and square pole tops, or the round pole mount for the side of round steel or aluminum poles.
A straight wall mount has a tenon that extends straight out from the wall. A 90° wall mount has an arm that projects about 8.5" out from the wall and then turns 90° into a tenon that runs parallel to the wall. Point the tenon up to mount a fixture like it sits on a pole top, or sideways for side-throw and corner mounting.

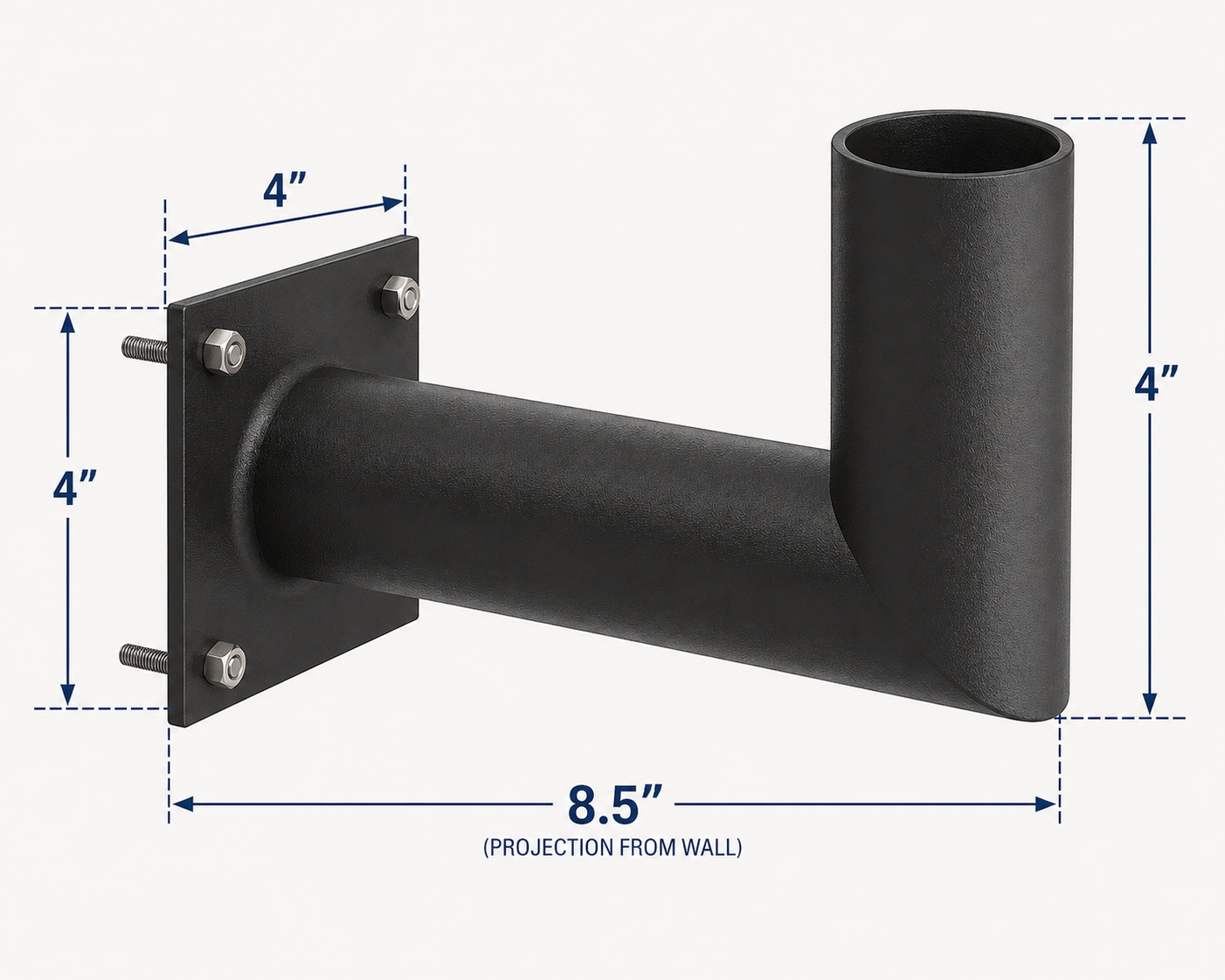

The 4" version has a 4" x 4" wall plate and a 4" long tenon. The 7" version has a larger 7" x 7" wall plate and a longer 6" tenon for larger, heavier fixtures. Both project about 8.5" from the wall.
When you need coverage along a building line, when there is no room or budget for a new pole, or when you are replacing fixtures at existing wall-mounted locations.
Yes. Loading docks, service areas and building entrances are some of the most common places for wall-mounted area lights and flood lights.
Yes. When a new LED fixture doesn’t match the old wall hardware, a 2-3/8" tenon bracket gives it a standard mounting point.
Use anchors and fasteners rated for your wall material (concrete, masonry, steel or wood) and for the weight of the fixture.
American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .
Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
