2 Pack: Backlit Panel Lights 2' X 2' Power and Color Selectable

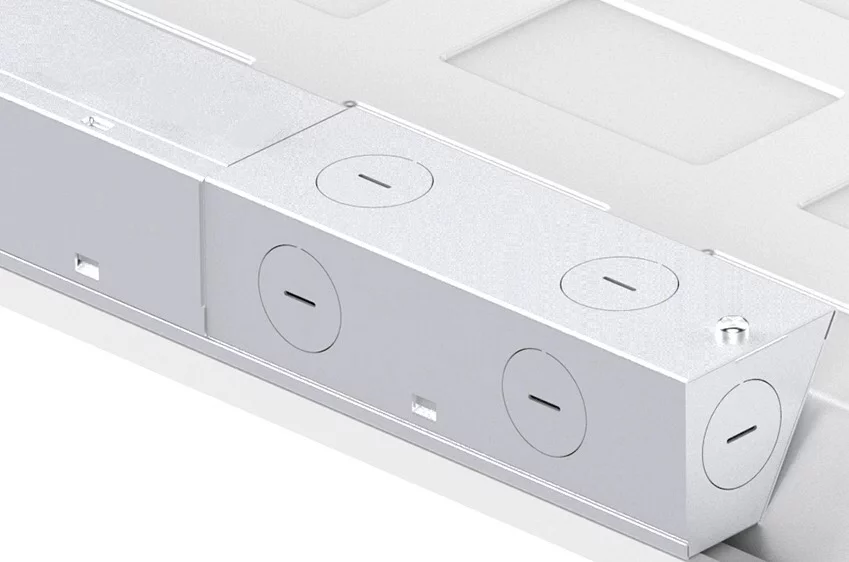

American Lighting Systems LED Panel Lights are a modern alternative to conventional 2'X2' and 2'X4' fluorescent tube fixtures. They feature perfectly-even light distribution, instant-on, and flicker-free performance. Our panels include a factory mounted junction box, 0-10V dimmable drivers and factory installed security hooks. They are ready to install in any drop-ceiling application or can be used with our American Lighting Systems Surface Mount Kits. This item must be shipped in master cartons of two panel lights to avoid damage.
| Part Number | ALS-PLBL-40W-2X2-345K | Driver | External in Junction Box |
| Wattage | 20W/30W/40W | LED Chips | SMD |
| Fluorescent Equivalent | 70W | Color Temperature | 3000K/4000K/5000K |
| Lumens per Watt | 130lm/w | CRI | ≥80 |
| Total Lumens | 2600/3900/5200lm | Certifications | UL, DLC |
| AC Input | AC100-277V | IP Rating | IP20 |
| Material | Aluminum Frame/PC Diffuser | Dimensions | 23.74" x 23.74" x 1.65" |
| Finish | Gloss White | Weight | 7lbs. |
| Lens Type/Beam Angle |
Frosted/120° | Luminary Life | 50,000 Hour Rated |
| Dimming | 0-10V |
Warranty | 5 Years |
Purchase matching surface mount kit:
