<<4000K>> 200W Area Light 4000K

<<4000K>> 200W Area Light 4000K

Name: > 200W Area Light 4000K
Brand: American Lighting Systems
SKU: ALS-SB-P2-200W-4K-III-BZ
Price: 168.80 USD
Availability: InStock

American Lighting SystemsSKU: ALS-SB-P2-200W-4K-III-BZ

Price:

Sale price$168.80

Quantity:

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

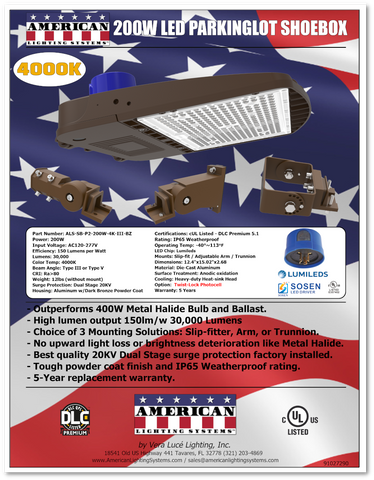

The ALS-SB-P2-200W-4K-III-BZ is a 200-watt LED area light designed as a one-for-one replacement for 400W metal halide fixtures on typical 20–30 ft poles. This model delivers high output at approximately 150 lumens per watt, providing around 30,000 lumens in a compact, low-profile housing for parking lots, drive lanes, and general commercial site lighting.

This fixture uses a one-piece die-cast aluminum housing with a UV-resistant bronze (BZ) powder coat finish. The cast aluminum body and integrated heat-sink fins provide efficient thermal management, keeping LED junction temperatures low and supporting long life in continuous night operation. The housing is built for outdoor environments and offers strong corrosion resistance for auto dealerships, retail centers, campuses, and similar applications.

Light is produced by high-efficacy Lumileds LEDs paired with a high-efficiency LED driver. The standard driver operates on 120–277VAC, 50/60 Hz, and includes 0–10V dimming capability, allowing integration with common commercial control systems. Higher-voltage versions are available within the ALS-SB family if needed for 277–480V.

This specific model is 4000K (4K), a neutral white color temperature that provides good visibility and visual comfort for mixed-use commercial sites. The fixture uses a Type III optical distribution, which is suited for perimeter poles and parking rows where forward throw and lateral spread are required. The precision lens system improves uniformity and reduces hot spots and dark areas compared to legacy HID fixtures, often without changing pole locations.

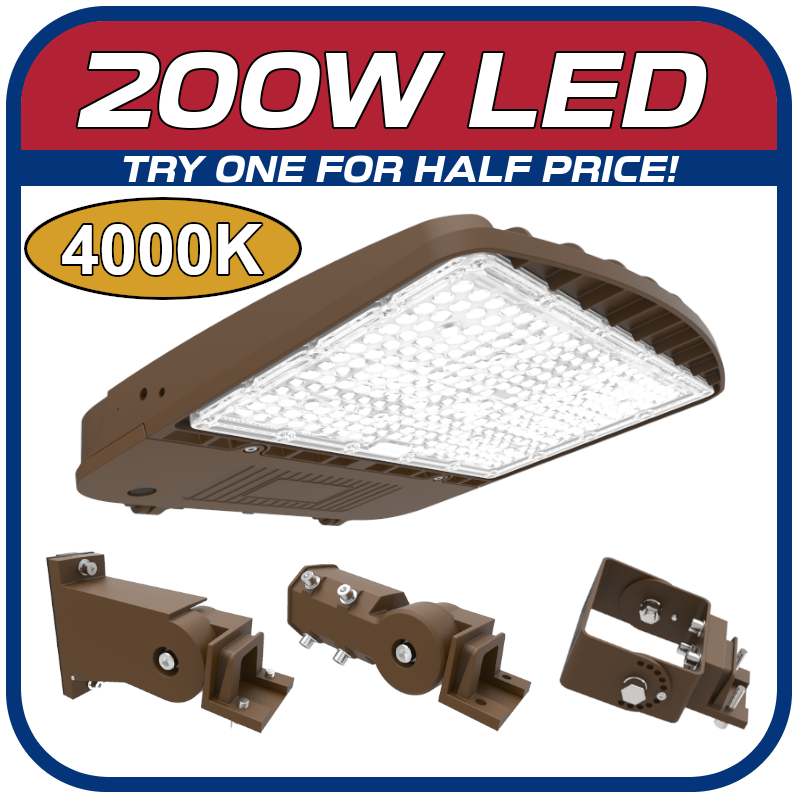

The ALS-SB-P2-200W-4K-III-BZ is available with multiple mounting options to match existing poles and brackets. Mounting hardware options include slip fitter, arm mount, trunnion, and yoke mounts, giving contractors flexibility for both new installations and retrofit projects. The mid-size housing measures approximately 19.19" x 12.4" x 2.48", with a low profile that helps minimize wind load and keeps the appearance clean on square or round poles.

Certified safety listings for use in the US and Canada are provided under listing number E519477. For contractors, this model is a straightforward specification: a 200W, 4000K, Type III, 150 lm/W LED area light with multiple mounting options that can replace 400W metal halide fixtures in many standard parking lot and site lighting layouts.

Specifications

Part Number ALS-SB-P2-200w-5k-III-BZ
Wattage 200W
Metal Halide Equivalent 750W
Lumens per Watt 150 Lm/w
Total Lumens 30,000Lm
AC Input AC 120-277V
Housing Material Die-casting Aluminum
Finish Dark Bronze
Lens Type Poly Carbonate
Dimming 0-10V Dimmable
Driver NA
LED Chips Lumileds
Color Temperature 4000K
CRI ≥80
Certifications UL, DLC
IP Rating 65
Dimensions 13.4" x 15.02" x 2.43"
Weight 12 Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .

What is the wattage and lumen output of the ALS-SB-P2-200W-4K-III-BZ?

It is a 200W LED area light that delivers about 30,000 lumens at 150 lumens per watt.
