200W White Area Light Parking Lot Fixture

200W White Area Light Parking Lot Fixture

Name: 200W White Area Light Parking Lot Fixture
Brand: American Lighting Systems
SKU: ALS-SB5-200W-5K-III-WH
Price: 129.80 USD
Availability: InStock

Save $40.00

American Lighting SystemsSKU: ALS-SB5-200W-5K-III-WH

Price:

Sale price$129.80 Regular price$169.80

Quantity:

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

The ALS-SB5-200W-5K-III-WH is an earlier-generation 200-watt LED area light designed for commercial exterior applications on standard 120–277V services. This model delivers approximately 29,000 lumens at 145 lumens per watt, making it a suitable LED replacement for 400W metal halide fixtures on typical 20–30 ft poles in parking lots, drive lanes, and general site lighting.

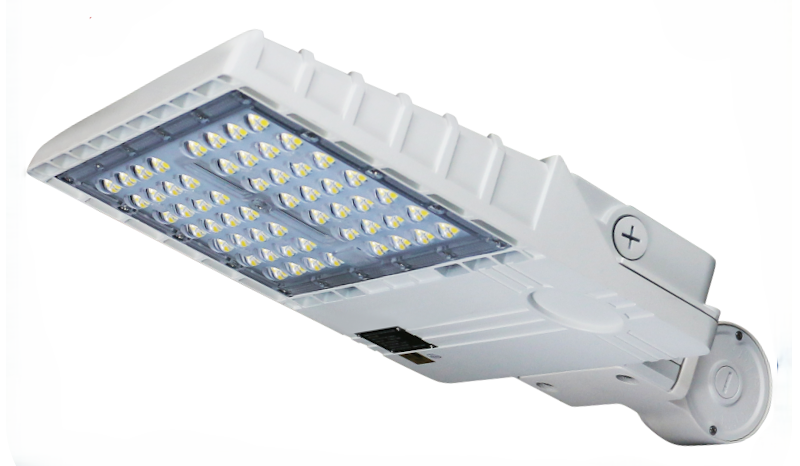

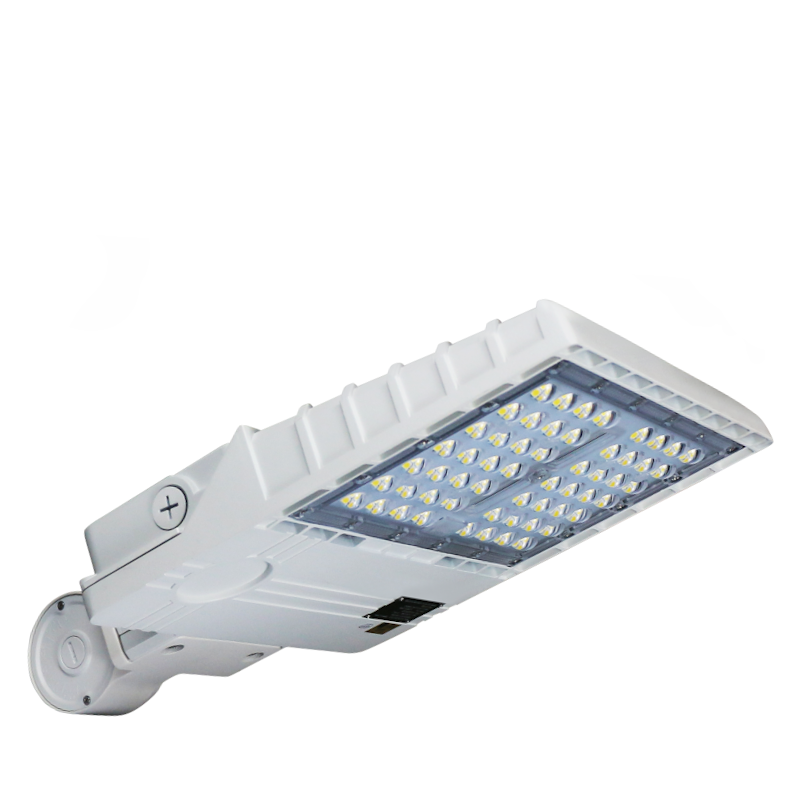

The fixture uses a die-cast aluminum housing with a white (WH) powder coat finish. The housing provides structural rigidity and heat dissipation, while the UV-resistant finish helps maintain appearance in outdoor environments. The construction is intended for commercial sites such as retail centers, campuses, auto dealerships, and light industrial areas where a white fixture is preferred to match building or canopy colors.

Light is produced by high-efficacy LEDs driven by a high-efficiency LED driver. The standard driver operates on 120–277VAC, 50/60 Hz, covering most commercial electrical services. The driver includes 0–10V dimming, allowing the fixture to be integrated with common lighting control systems for stepped or continuous dimming, occupancy-based control, and energy management.

This model is 5000K (5K), a cool white color temperature commonly used for parking lots and security lighting where high visibility and contrast are required. The fixture uses a Type III optical distribution, designed for perimeter poles, parking rows, and drive lanes where forward throw and lateral spread are needed. The lens system improves uniformity and reduces hot spots compared to older HID fixtures, often without changing existing pole locations.

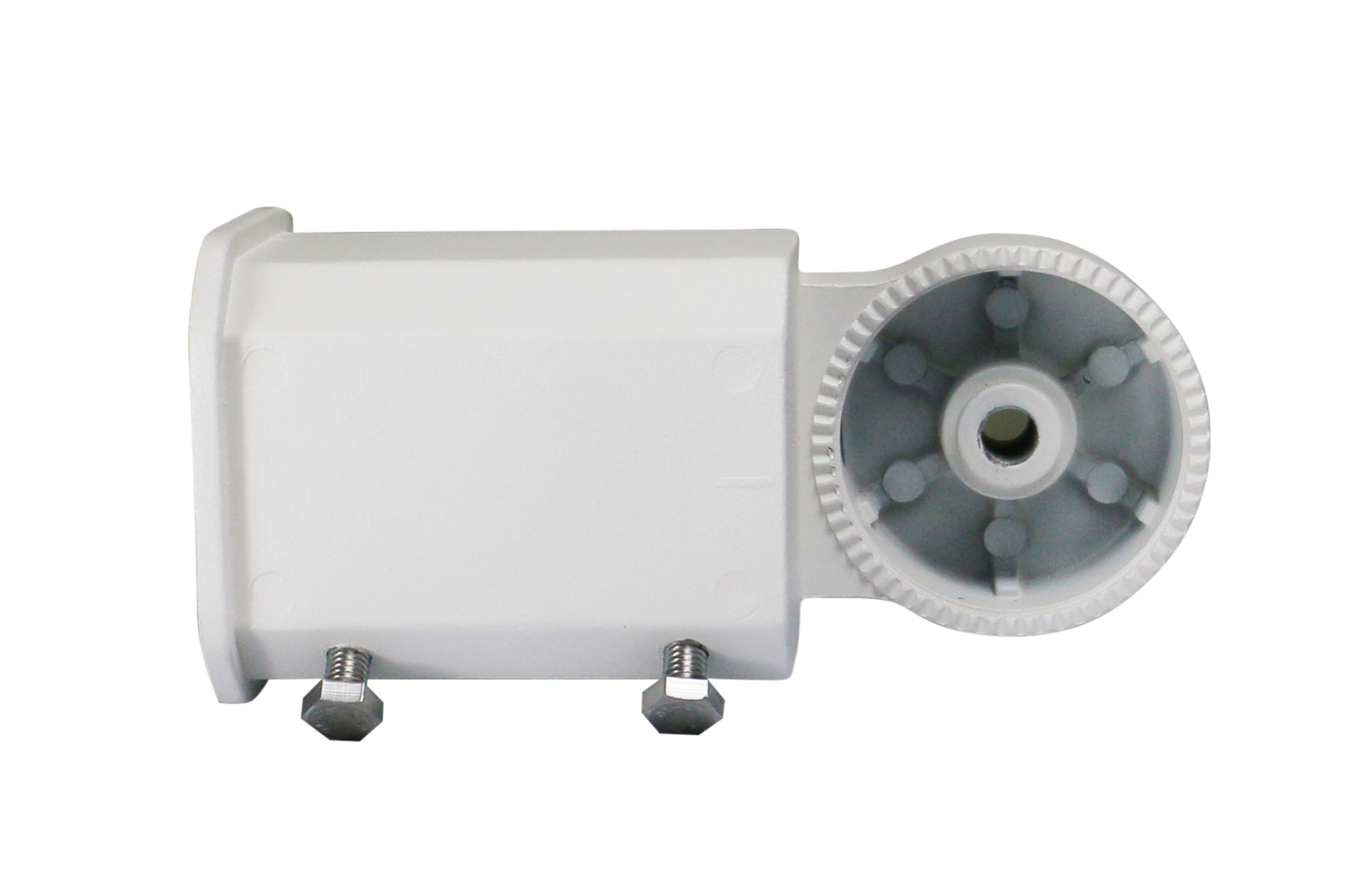

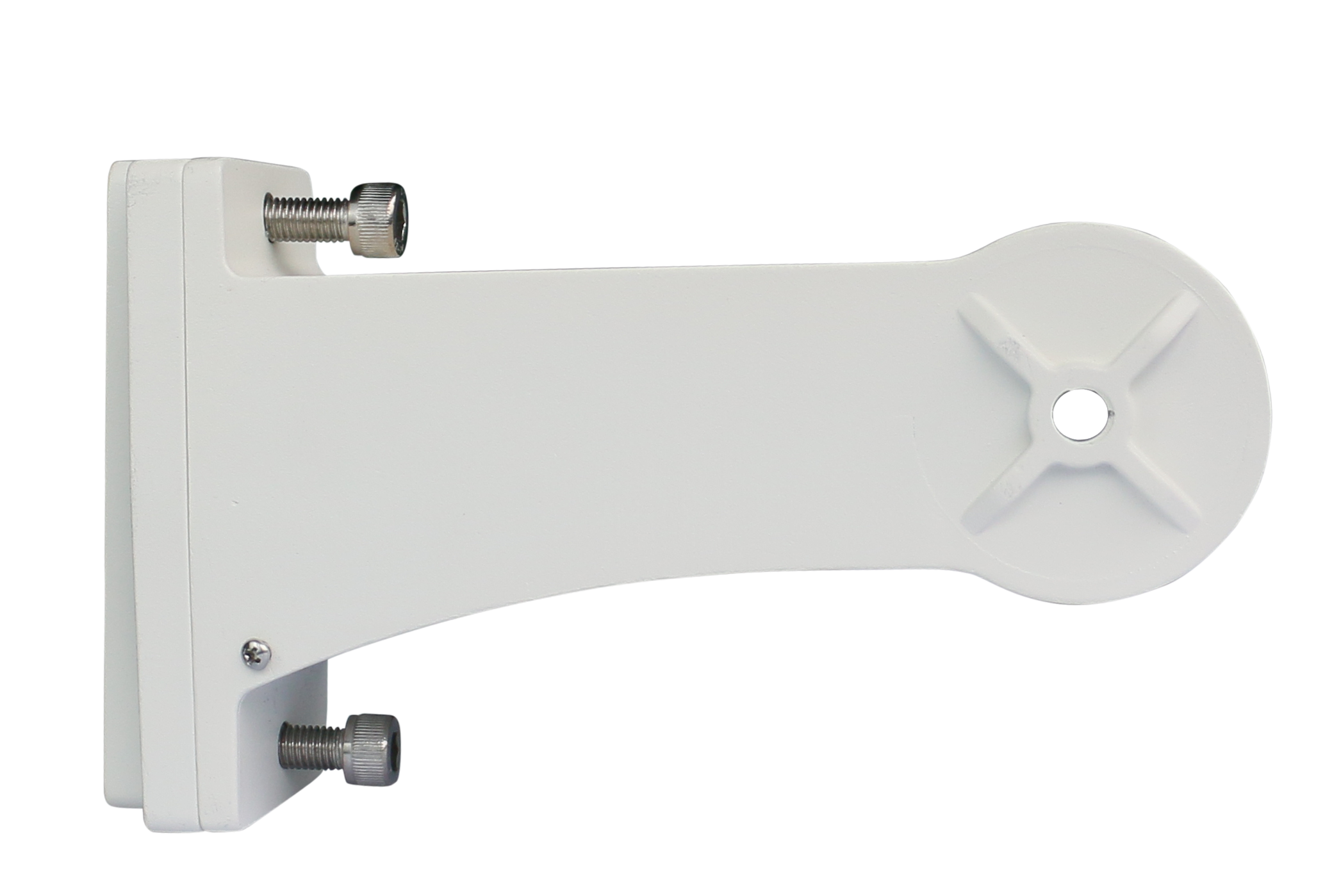

The ALS-SB5-200W-5K-III-WH is offered with multiple mounting options to match existing poles and brackets. Typical mounting hardware options include slip fitter and arm mount, giving contractors flexibility for both new installations and retrofit projects on square or round poles. The housing maintains a relatively low profile for its output class, helping manage wind load and maintain a clean appearance.

Specifications

Part Number ALS-SB5-200W-5K-III-WH
Wattage 200W
Metal Halide Equivalent 750W
Lumens per Watt 145 Lm/w
Total Lumens 29,000Lm
AC Input AC 120-277V
Housing Material Die-casting Aluminum
Finish White
Lens Type Poly Carbonate
Dimming 0-10V Dimmable
Driver NA
LED Chips Lumileds
Color Temperature 5000K
CRI ≥70
Certifications UL, DLC
IP Rating 65
Dimensions L16.54" x W12.6" xH 2.46"
Weight 19 Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
