200W - 480V Area Light Parking Lot Fixture

200W - 480V Area Light Parking Lot Fixture

Name: 200W - 480V Area Light Parking Lot Fixture
Brand: American Lighting Systems
SKU: ALS-SB-P2-200W-5K-III-BZ-HV
Price: 228.80 USD
Availability: InStock

480V

American Lighting SystemsSKU: ALS-SB-P2-200W-5K-III-BZ-HV

Price:

Sale price$228.80

Quantity:

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

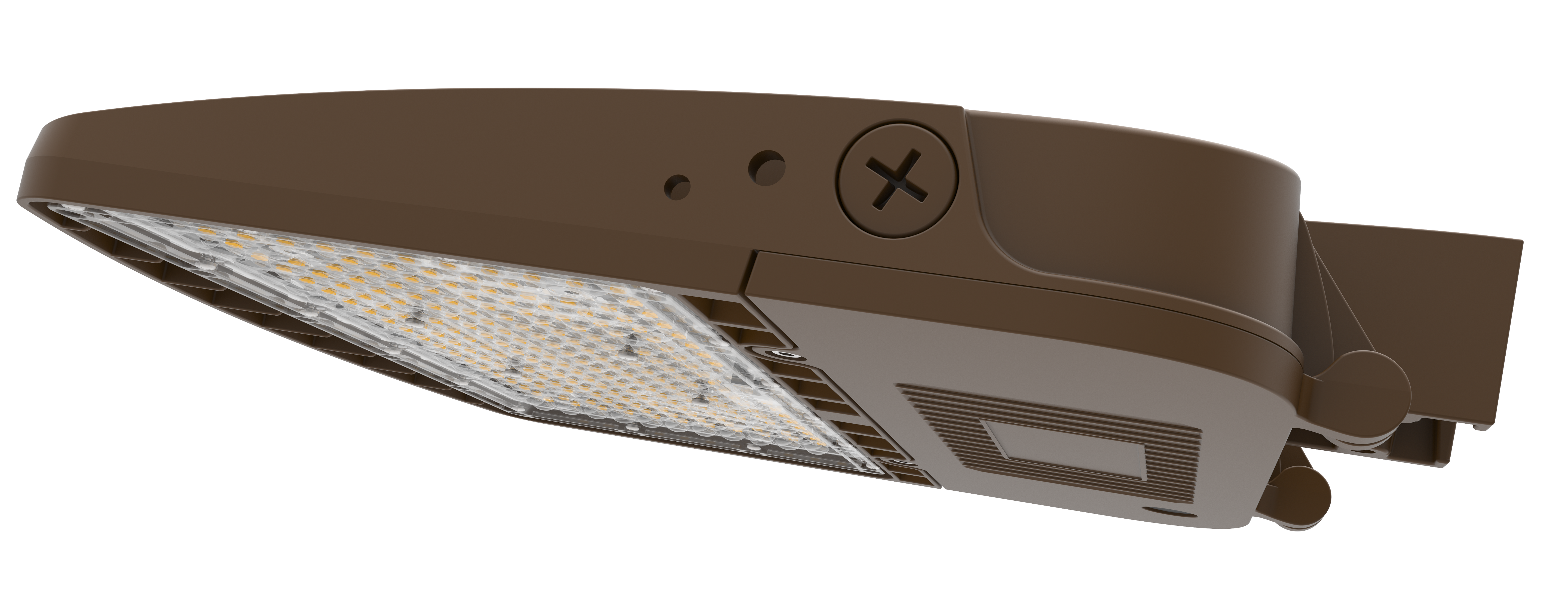

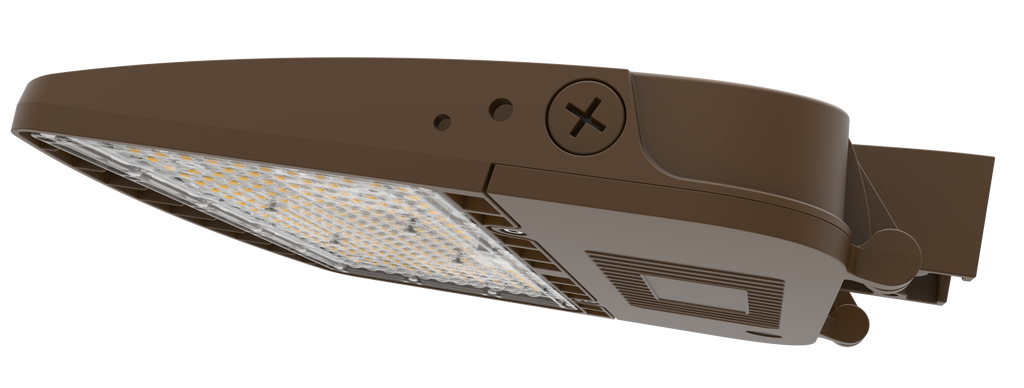

The ALS-SB-P2-200W-5K-III-BZ-HV is a 200-watt LED area light designed for commercial and industrial sites that require high-voltage input and high-output performance. This model delivers approximately 30,000 lumens at 150 lumens per watt, making it a strong LED replacement for 400W metal halide fixtures on typical 20–30 ft poles in parking lots, drive lanes, and general site lighting.

The fixture uses a one-piece die-cast aluminum housing with a bronze (BZ) powder coat finish. The cast aluminum body and integrated heat-sink fins provide efficient thermal management, keeping LED junction temperatures low and supporting long service life in nightly operation. The UV-resistant finish and corrosion-resistant construction make it suitable for retail centers, auto dealerships, campuses, and industrial facilities.

High-efficacy Lumileds LEDs are paired with a high-voltage LED driver to achieve the 150 lm/W performance level. The HV driver is designed for higher commercial and industrial line voltages 277-480V (beyond standard 120–277VAC), providing stable operation and consistent light output across the specified high-voltage range. The driver includes 0–10V dimming, allowing the fixture to integrate with typical control systems for stepped or continuous dimming, occupancy-based control, and energy management.

This specific model is 5000K (5K), a cool white color temperature commonly used for parking lots and security lighting where maximum visibility and contrast are required. The fixture uses a Type III optical distribution, designed for perimeter poles, parking rows, and drive lanes where forward throw and lateral spread are needed. The precision-molded lens system improves uniformity and reduces hot spots and dark areas compared to legacy HID fixtures, often without changing existing pole locations.

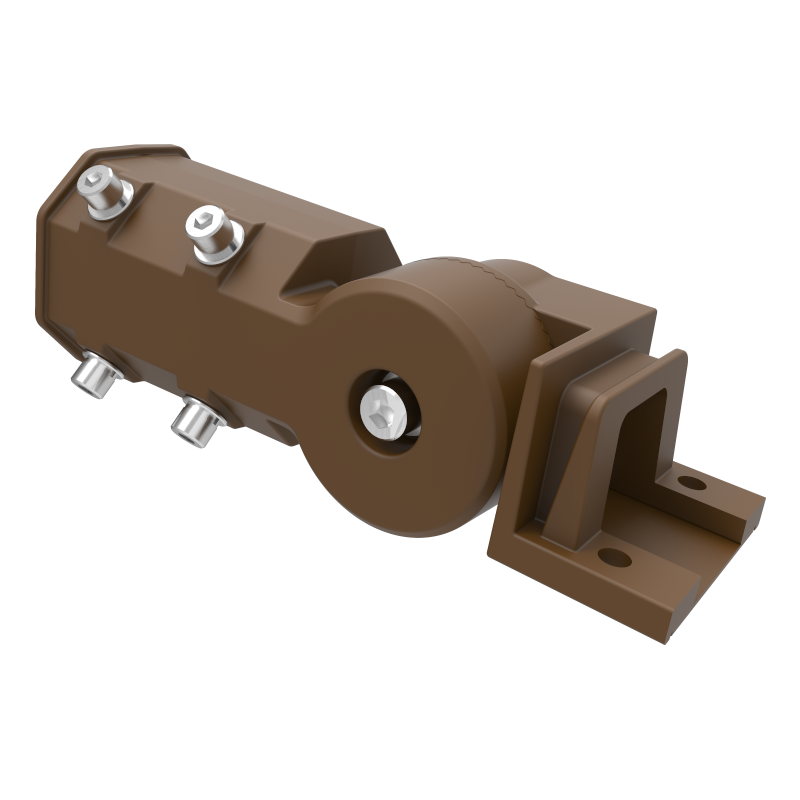

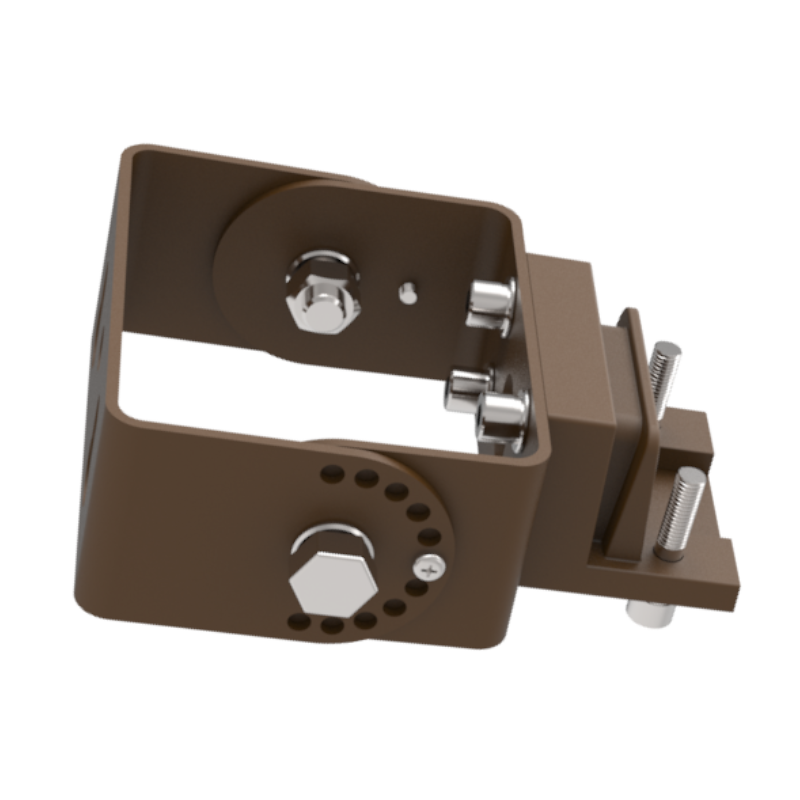

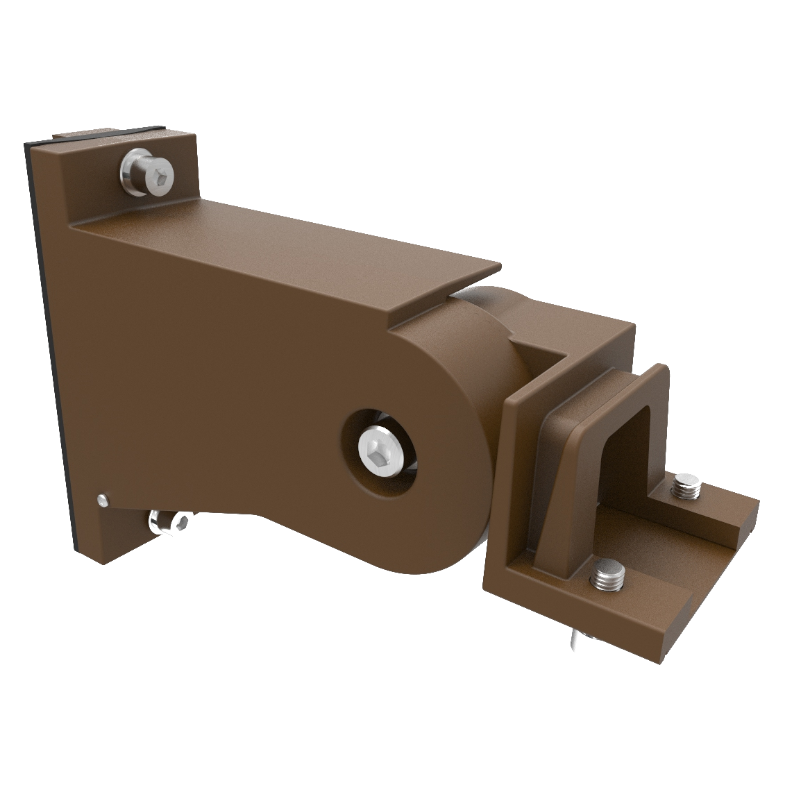

The ALS-SB-P2-200W-5K-III-BZ-HV uses the mid-size housing in the series, with approximate dimensions of 19.19" x 12.4" x 2.48". The low-profile design helps manage wind load and maintains a clean appearance on square or round poles. Multiple mounting options are available, including slip fitter, arm mount, trunnion, and yoke mounts, giving contractors flexibility for both new installations and retrofit projects.

Specifications

Part Number ALS-SB-P2-200w-5k-III-BZ-HV
Wattage 200W
Metal Halide Equivalent 750W
Lumens per Watt 150 Lm/w
Total Lumens 30,000Lm
AC Input AC 277-480V
Housing Material Die-casting Aluminum
Finish Dark Bronze
Lens Type Poly Carbonate
Dimming 0-10V Dimmable
Driver NA
LED Chips Lumileds
Color Temperature 5000K
CRI ≥80
Certifications UL, DLC
IP Rating 65
Dimensions 13.4" x 15.02" x 2.43"
Weight 12 Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
