Description
Overview

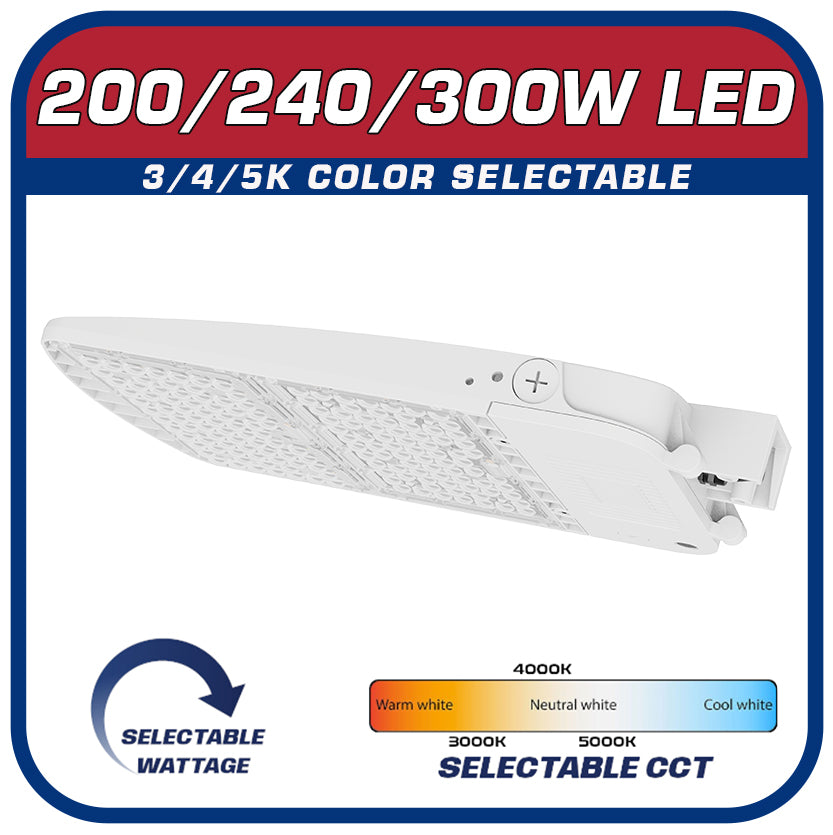

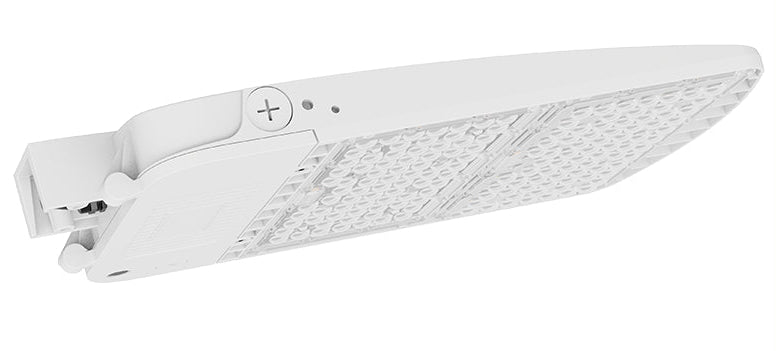

Built for large site and parking-lot projects, this SB-P2 series head lets you standardize on one SKU and set the output in the field. The HTCP configuration is power-selectable (200/240/300W) and CCT-selectable (3000K/4000K/5000K) via sealed onboard switches, so you can match existing poles, meet spec changes, or value-engineer on the fly without stocking multiple models. A one-piece die-cast aluminum housing with a UV-resistant powder coat handles heat and weather, while Lumileds® LEDs deliver high efficacy with long life. Choose the optic you need—Type III/IV/V—and pair with your preferred mount (slip-fitter, arm for square/round pole, trunnion, or yoke). 0–10V dimming is standard, and the head is ready for photocells to cut energy use after hours. American Lighting Systems backs it with same-day shipping on stock and real human support for layout and accessory selection.
Why contractors choose it
-
Selectable power & CCT: 200/240/300W and 3000/4000/5000K—one head covers multiple specs.
-
High performance: ~150 lm/W class, CRI ≥70, L70 >50,000 hours.
-
Rugged build: die-cast aluminum, UV-resistant finish, wide −40°F to +113°F operating range.
-
Optics for every layout: Type III/IV/V distributions.
-
Controls-ready: 0–10V dimming; accepts photocells and 20kV Surge Protection.
-
Flexible power: MV 120–277V and HV 277–480V options for new or retrofit poles.
Key specs
-
Wattage (field-set): 200 / 240 / 300W
-
CCT (field-set): 3000K / 4000K / 5000K
-
Voltage: MV 120–277V
-
Efficacy / life: 130–150 lm/W class; L70 >50,000 hrs; CRI ≥70
-
Optics: Type II / Type III / Type IV / Type V
-
Dimming: 0–10V
-
Housing/finish: one-piece die-cast aluminum; UV-resistant powder coat (bronze/black)
-
Operating temp: −40°F to +113°F
-
Controls & protection: photocell and 20kV surge protection
-
Mounts: slip-fitter, square/round-pole arm, trunnion, yoke; house-side shield accessory
-
Listings: cULus (E519477)
Applications
Parking lots, roadways, campuses, dealerships, retail centers, perimeters, and general site lighting.
