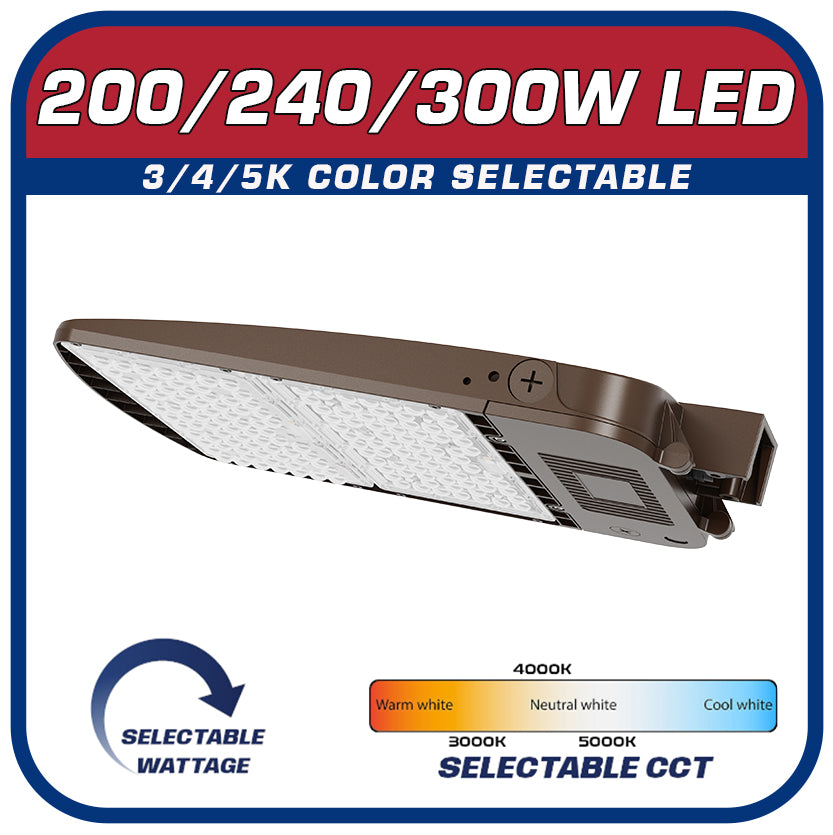

200/240/300W & 3/4/5K Selectable Area Light Parking Lot Fixture

Overview
Built for large site and parking-lot projects, this SB-P2 series head lets you standardize on one SKU and set the output in the field. The HTCP configuration is power-selectable (200/240/300W) and CCT-selectable (3000K/4000K/5000K) via sealed onboard switches, so you can match existing poles, meet spec changes, or value-engineer on the fly without stocking multiple models. A one-piece die-cast aluminum housing with a UV-resistant powder coat handles heat and weather, while Lumileds® LEDs deliver high efficacy with long life. Choose the optic you need—Type III/IV/V—and pair with your preferred mount (slip-fitter, arm for square/round pole, trunnion, or yoke). 0–10V dimming is standard, and the head is ready for photocells to cut energy use after hours.  American Lighting Systems backs it with same-day shipping on stock and real human support for layout and accessory selection.

Why contractors choose it

• Selectable power & CCT: 200/240/300W and 3000/4000/5000K—one head covers multiple specs.

• High performance: ~150 lm/W class, CRI ≥70, L70 >50,000 hours.

• Rugged build: die-cast aluminum, UV-resistant finish, wide −40°F to +113°F operating range.

• Optics for every layout: Type III/IV/V distributions.

• Controls-ready: 0–10V dimming; accepts photocells and 20kV Surge Protection.

• Flexible power: MV 120–277V and HV 277–480V options for new or retrofit poles.

Key specs

• Wattage (field-set): 200 / 240 / 300W

• CCT (field-set): 3000K / 4000K / 5000K

• Voltage: MV 120–277V

• Efficacy / life: 130–150 lm/W class; L70 >50,000 hrs; CRI ≥70

• Optics: Type II / Type III / Type IV / Type V

• Dimming: 0–10V

• Housing/finish: one-piece die-cast aluminum; UV-resistant powder coat (bronze/black)

• Operating temp: −40°F to +113°F

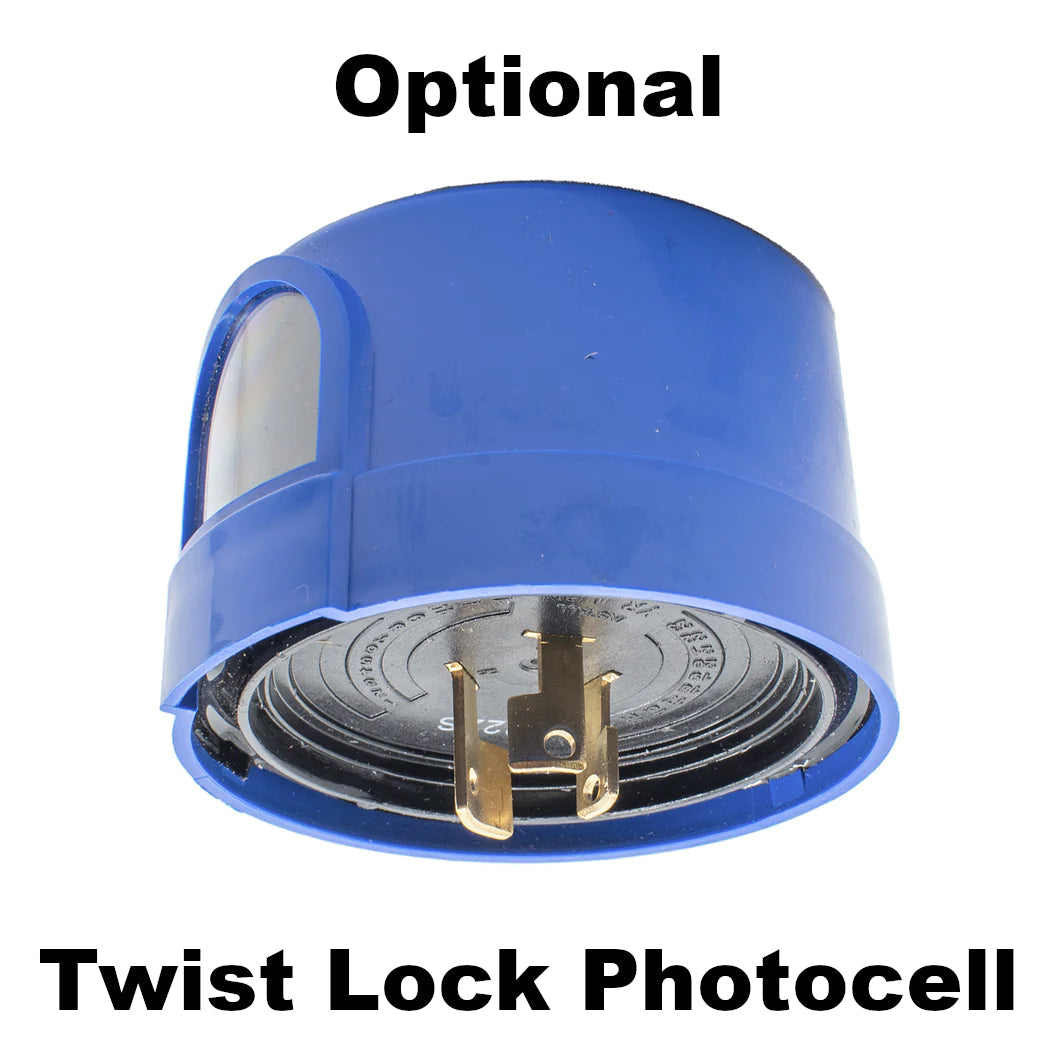

• Controls & protection: photocell and 20kV surge protection

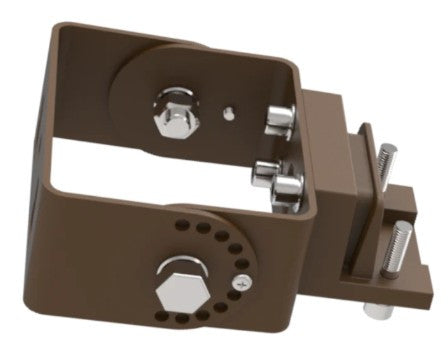

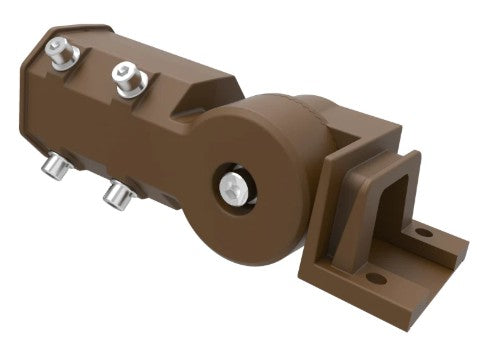

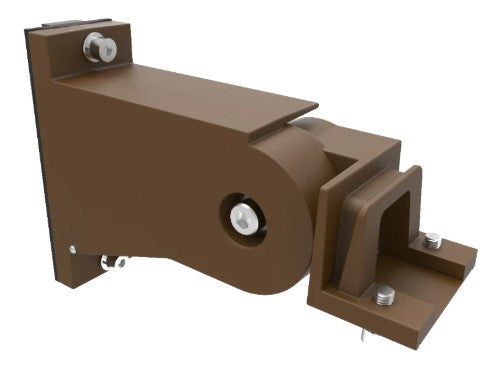

• Mounts: slip-fitter, square/round-pole arm, trunnion, yoke; house-side shield accessory

• Listings: cULus (E519477)

Applications
Parking lots, roadways, campuses, dealerships, retail centers, perimeters, and general site lighting.
