100W ARCHITECTURAL 90° ROTATING WALL ...

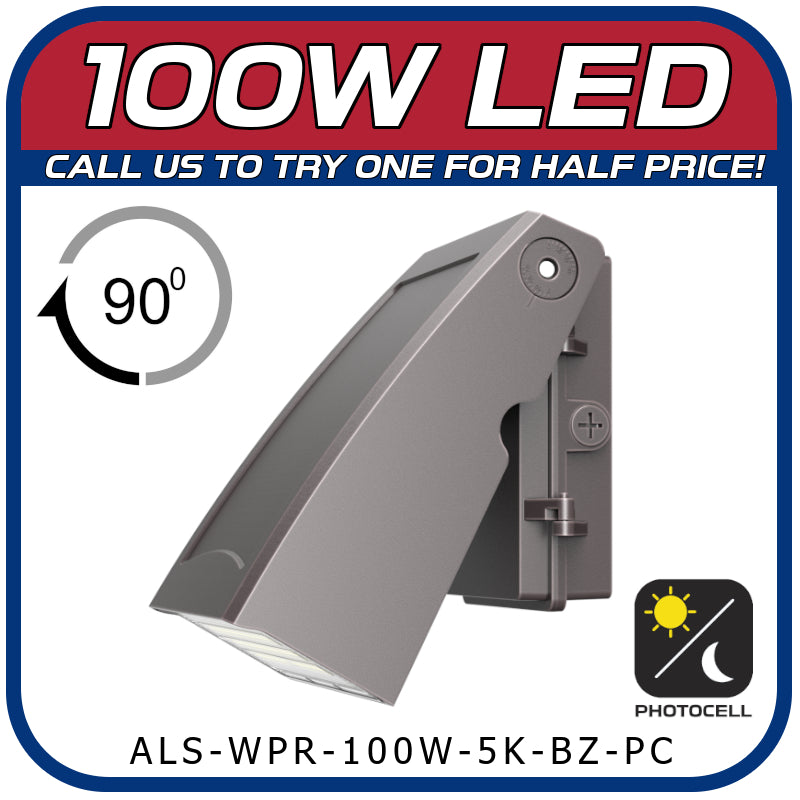

100W ARCHITECTURAL 90° ROTATING WALL PACK W/PHOTOCELL

100W ARCHITECTURAL 90° ROTATING WALL PACK W/PHOTOCELL

Name: 100W ARCHITECTURAL 90° ROTATING WALL PACK W/PHOTOCELL
Brand: American Lighting Systems
SKU: ALS-WPR-100W-5K-BZ-PC
Price: 114.80 USD
Availability: InStock

New

American Lighting SystemsSKU: ALS-WPR-100W-5K-BZ-PC

Price:

Sale price$114.80

Quantity:

Download Cutsheet

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

The ALS-WPR-100W-5K-BZ-PC is a dedicated-output architectural LED wall pack designed for high-output, modern exterior lighting on standard 120–277V service. Delivering up to 13,000 lumens (130 lm/W) at a crisp 5000K color temperature, this fixture is a robust LED replacement for 320–400W metal halide wall packs—ideal for building facades, entryways, pathways, and perimeter security.

The fixture features a rugged, die-cast aluminum housing with a bronze powder coat finish for a contemporary architectural look. The high-transparency, UV-stabilized polycarbonate lens ensures even, glare-free light output and long-term durability in harsh outdoor environments. Its architectural form factor is perfect for both new construction and retrofit projects where aesthetics and performance matter.

A built-in photocell enables automatic dusk-to-dawn operation, eliminating manual switching and saving energy. The housing is fully sealed and rated IP65 for wet locations, ensuring reliable performance in any outdoor commercial or industrial application. The high-efficiency LED driver operates on 120–277VAC, 50/60 Hz and supports 0–10V dimming for integration with lighting controls or building automation systems.

Specifications

Part Number ALS-WPR-100W-5K-BZ-PC
Wattage 100W
Metal Halide Equivalent Replaces up to 400W
Lumens per Watt 130 Lm/w
Total Lumens 13,000Lm
AC Input AC 120-277V
Housing Material Aluminum Alloy
Finish Bronze Powder-Coat
Lens Type UV-resistant Type II
Dimming 0-10V Dimmable
Driver WEIPENG Power
LED Chips Philips Lumileds 3030
Color Temperature 5000K
CRI ≥70
Certifications DLC Premium, ETL
IP Rating IP65
Dimensions 13.03"x10.51"x4.96"
Weight 7.12Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
