150W - 480V Area Light Parking Lot Fixture

150W - 480V Area Light Parking Lot Fixture

Name: 150W - 480V Area Light Parking Lot Fixture
Brand: American Lighting Systems
SKU: ALS-SB-P2-150W-5K-III-BZ-HV
Price: 198.80 USD
Availability: InStock

American Lighting SystemsSKU: ALS-SB-P2-150W-5K-III-BZ-HV

Price:

Sale price$198.80

Quantity:

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

The ALS-SB-P2-150W-5K-III-BZ-HV is a 150-watt LED area light designed for commercial and industrial exterior lighting where high-voltage input and efficient performance are required. This model delivers approximately 22,500 lumens at 150 lumens per watt, making it a strong LED replacement for 400W metal halide fixtures in small to mid-size parking lots, drive lanes, and general site lighting.

This fixture uses a one-piece die-cast aluminum housing with a UV-resistant bronze (BZ) powder coat finish. The cast aluminum body and integrated heat-sink fins provide effective thermal management, keeping LED junction temperatures low and supporting long operating life in nightly use. The housing is built for outdoor environments and offers good corrosion resistance for retail centers, auto dealerships, campuses, and similar sites.

Light is produced by high-efficacy Lumileds LEDs driven by a high-efficiency high-voltage LED driver. The HV driver is designed for commercial and industrial electrical services where line voltage is higher than standard 120–277V systems it is for 277-480V. It maintains stable operation and supports consistent light output across the specified high-voltage range. The driver includes 0–10V dimming, allowing the fixture to be integrated with typical control systems for stepped or continuous dimming and energy management.

This specific model is 5000K (5K), a cool white color temperature commonly used for parking lots and security lighting where maximum visibility and contrast are desired. The fixture uses a Type III optical distribution, which is suited for perimeter poles, parking rows, and drive lanes where forward throw and lateral spread are needed. The precision lens system improves uniformity and reduces dark spots compared to legacy HID fixtures, often without changing existing pole locations.

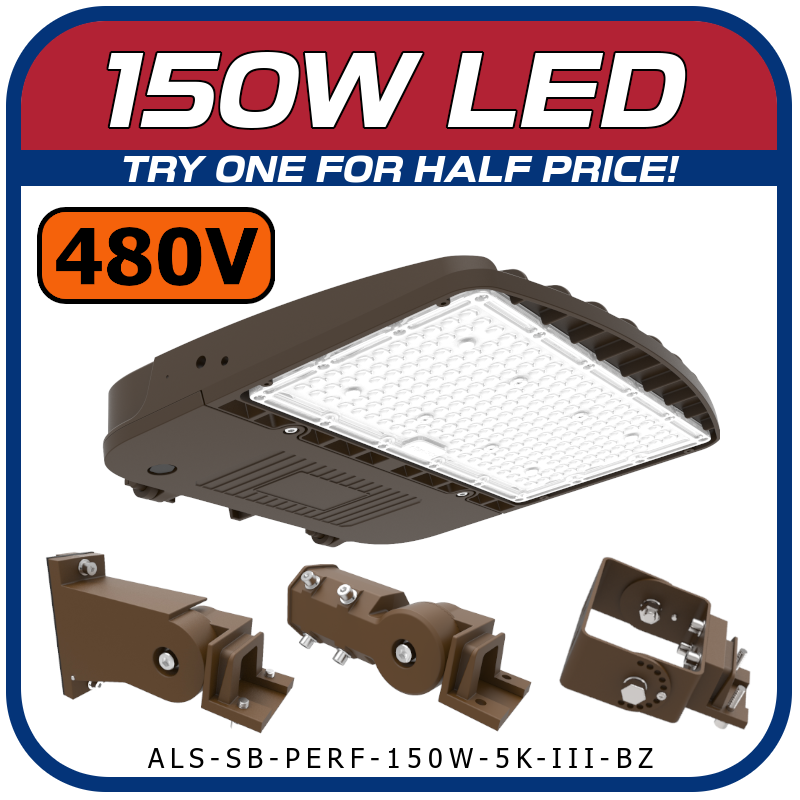

The ALS-SB-P2-150W-5K-III-BZ-HV is available with multiple mounting options to match existing poles and brackets. Mounting hardware options include slip fitter, arm mount, trunnion, and yoke mounts, giving contractors flexibility for both new installations and retrofit projects on square or round poles. The housing size is compact and low profile, helping minimize wind load and maintain a clean appearance on the pole.

Specifications

Part Number ALS-SB-P2-150w-5k-III-BZ-HV
Wattage 150W
Metal Halide Equivalent 400W
Lumens per Watt 150 Lm/w
Total Lumens 22,500Lm
AC Input AC 277-480V
Housing Material Die-casting Aluminum
Finish Dark Bronze
Lens Type Poly Carbonate
Dimming 0-10V Dimmable
Driver NA
LED Chips Lumileds
Color Temperature 5000K
CRI ≥80
Certifications UL, DLC
IP Rating 65
Dimensions 12.4" x 13.31" x 2.47"
Weight 11 Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
