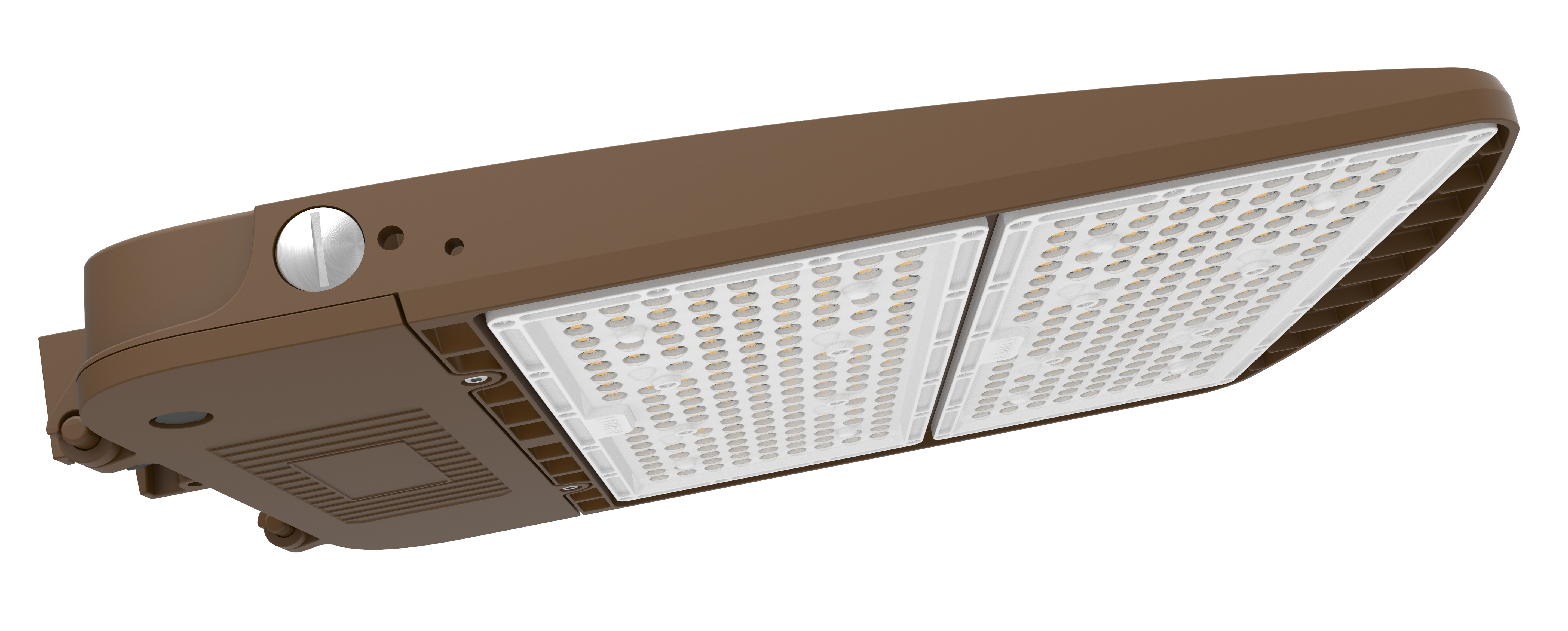

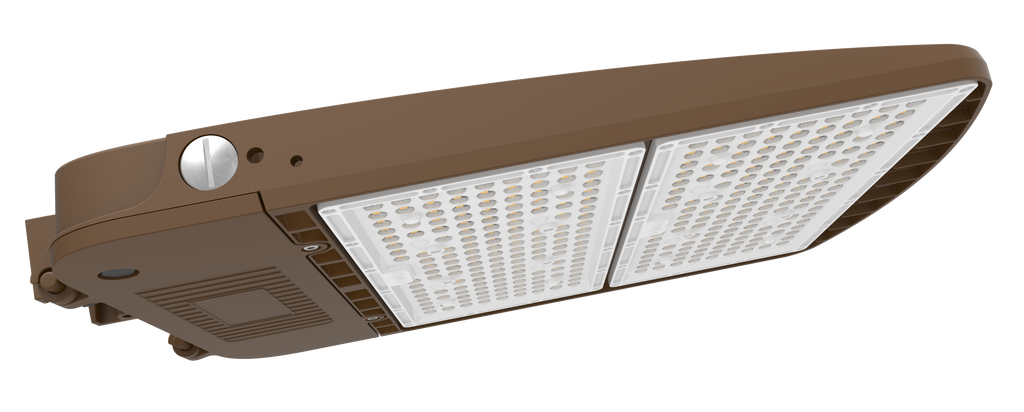

200/240/300W & 3/4/5K Selectable Area Light Parking Lot Fixture

200/240/300W & 3/4/5K Selectable Area Light Parking Lot Fixture

Name: 200/240/300W & 3/4/5K Selectable Area Light Parking Lot Fixture
Brand: American Lighting Systems
SKU: ALS-SB-P2-200/240/300W-3/4/5K-III-BZ
Price: 248.80 USD
Availability: InStock

American Lighting SystemsSKU: ALS-SB-P2-200/240/300W-3/4/5K-III-BZ

Price:

Sale price$248.80

Quantity:

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

The ALS-SB-P2-200/240/300W-3/4/5K-III-BZ is a wattage- and CCT-selectable LED area light designed to give contractors flexibility on site while reducing the number of SKUs they need to stock. One fixture can be set to 200W, 240W, or 300W, and to 3000K, 4000K, or 5000K, covering a wide range of parking lot and site lighting applications from a standard 120–277V service.

At full output, the 300W setting delivers up to 45,000 lumens (approx. 150 lm/W). The 240W and 200W settings provide roughly 36,000 lumens and 30,000 lumens respectively, allowing you to match light levels to mounting height, pole spacing, and project requirements without changing fixtures. This makes the ALS-SB-P2-200/240/300W-3/4/5K-III-BZ a practical LED replacement for 750–1000W metal halide at 300W, and for lower HID wattages at reduced settings.

The fixture uses a one-piece die-cast aluminum housing with a bronze (BZ) powder coat finish. The die-cast body and integrated heat-sink fins provide efficient thermal management, keeping LED junction temperatures low and supporting long service life in continuous night operation. The UV-resistant finish and corrosion-resistant construction make it suitable for distribution centers, industrial yards, large parking lots, auto dealerships, and campus lighting.

High-efficacy LEDs are paired with a high-efficiency LED driver to support the selectable wattage range. The driver operates on 120–277VAC, 50/60 Hz, and includes 0–10V dimming, allowing integration with standard control systems for stepped or continuous dimming, occupancy-based control, and energy management. Wattage and CCT are set via internal switches, so the same fixture can be configured as a 200W, 240W, or 300W unit at 3000K, 4000K, or 5000K depending on the job.

This model uses a Type III optical distribution, designed for perimeter poles, parking rows, and drive lanes where forward throw and lateral spread are required. The precision optics provide uniform illumination and help reduce hot spots and dark areas compared to older HID fixtures, often without changing existing pole locations.

The ALS-SB-P2-200/240/300W-3/4/5K-III-BZ uses the larger housing in the series, with approximate dimensions of 25.98" x 12.95" x 2.68". Multiple mounting options are available, including slip fitter, arm mount, trunnion, and yoke mounts, giving contractors flexibility for both new installations and retrofit projects on square or round poles.

Specifications

Part Number ALS-SB-P2-200/240/300w-5k-III-BZ
Wattage 300W
Metal Halide Equivalent 700-1000W
Lumens per Watt 150 Lm/w
Total Lumens 30,000/36000/45,000Lm
AC Input AC 120-277V
Housing Material Die-casting Aluminum
Finish Dark Bronze
Lens Type Poly Carbonate
Dimming 0-10V Dimmable
Driver NA
LED Chips Lumileds
Color Temperature 3000k/4000k/5000K
CRI ≥80
Certifications UL, DLC
IP Rating 65
Dimensions 25.98"x12.95"x2.68
Weight 12 Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
