200W LED Shoebox Parking Lot Fixture White Finish

200W LED Shoebox Parking Lot Fixture White Finish

Name: 200W LED Shoebox Parking Lot Fixture White Finish
Brand: American Lighting Systems
SKU: ALS-SB-P2-200W-5K-III-WH
Price: 168.80 USD
Availability: InStock

American Lighting SystemsSKU: ALS-SB-P2-200W-5K-III-WH

Price:

Sale price$168.80

Quantity:

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

The ALS-SB-P2-200W-5K-III-WH is a 200-watt LED area light designed for commercial and industrial exterior lighting where high output, clean white housing, and controlled distribution are required. This model delivers approximately 30,000 lumens at 150 lumens per watt, making it a strong LED replacement for 400W metal halide fixtures on typical 20–30 ft poles in parking lots, drive lanes, and general site lighting.

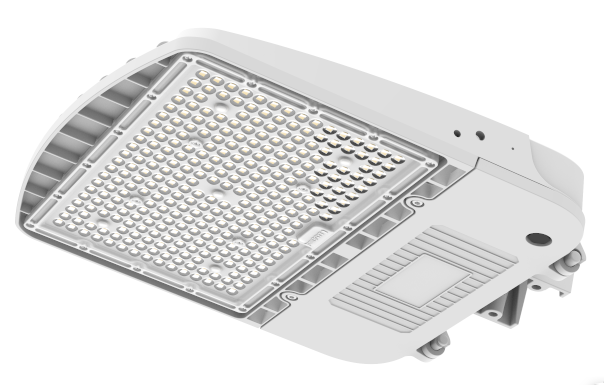

The fixture uses a one-piece die-cast aluminum housing with a white (WH) powder coat finish. The die-cast body and integrated heat-sink fins provide effective thermal management, keeping LED junction temperatures low and supporting long life in continuous night-time operation. The UV-resistant finish and corrosion-resistant construction make it suitable for coastal, retail, and campus environments where appearance and durability both matter.

High-efficacy Lumileds LEDs are paired with a high-efficiency LED driver to achieve the 150 lm/W performance level. The standard driver operates on 120–277VAC, 50/60 Hz, covering most commercial electrical services. The driver includes 0–10V dimming, allowing the fixture to tie into common control systems for stepped or continuous dimming, occupancy-based control, and energy management strategies.

This specific model is 5000K (5K), a cool white color temperature that provides crisp, high-contrast visibility for parking lots, auto dealerships, and security lighting. The fixture uses a Type III optical distribution, designed for perimeter poles and parking rows where forward throw and lateral spread are needed. The precision lens system improves uniformity and reduces hot spots and dark areas compared to legacy HID fixtures, often without changing existing pole locations.

The ALS-SB-P2-200W-5K-III-WH supports multiple mounting configurations to match existing poles and brackets. Available mounting hardware includes slip fitter, arm mount, trunnion, and yoke options, giving contractors flexibility for both new installations and retrofit work on square or round poles. The mid-size, low-profile housing (approximately 19.19" x 12.4" x 2.48") helps minimize wind load and maintains a clean, modern appearance, especially where a white fixture is preferred to match building or canopy colors.

Specifications

Part Number ALS-SB-P2-200w-5k-III-WH
Wattage 200W
Metal Halide Equivalent 750W
Lumens per Watt 150 Lm/w
Total Lumens 30,000Lm
AC Input AC 120-277V
Housing Material Die-casting Aluminum
Finish White
Lens Type Poly Carbonate
Dimming 0-10V Dimmable
Driver NA
LED Chips Lumileds
Color Temperature 5000K
CRI ≥80
Certifications UL, DLC
IP Rating 65
Dimensions 12.4" x 13.31" x 2.47"
Weight 9 Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
