100W WALL PACK W/MOTION SENSOR 5000K

Name: 100W WALL PACK W/MOTION SENSOR 5000K
Brand: American Lighting Systems
SKU: ALS-WP3-100W-5K-BZ-MS
Price: 69.00 USD
Availability: InStock

Save $60.80

American Lighting SystemsSKU: ALS-WP3-100W-5K-BZ-MS

Price:

Sale price$69.00 Regular price$129.80

Quantity:

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Share this product

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Same Day Quotes

30 Day Returns

Free Shipping On $500

5-Year Warranty

Certified Products

Description

Specifications

FAQ

Description

The ALS-WP3-100W-5K-BZ-MS is a dedicated-output LED wall pack designed for energy-efficient exterior lighting with enhanced security and automatic control. Delivering up to 14,000 lumens (140 lm/W) at a crisp 5000K color temperature, this fixture is a robust LED replacement for 250–320W metal halide wall packs on building exteriors, walkways, loading docks, and security perimeters.

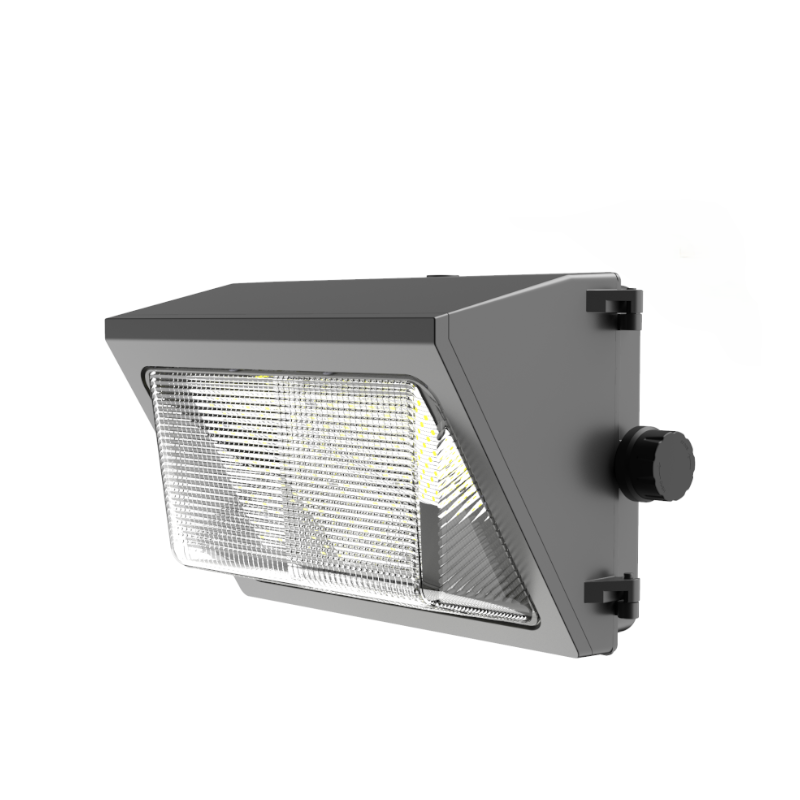

This model features a rugged, die-cast aluminum housing with a bronze powder coat finish and a high-transparency tempered glass lens for maximum durability and light transmission. The traditional wall pack form factor ensures compatibility with most existing junction boxes and mounting locations, making retrofits quick and straightforward. The body is fully sealed and rated IP65 for wet locations, ensuring reliable performance in all outdoor commercial or industrial environments.

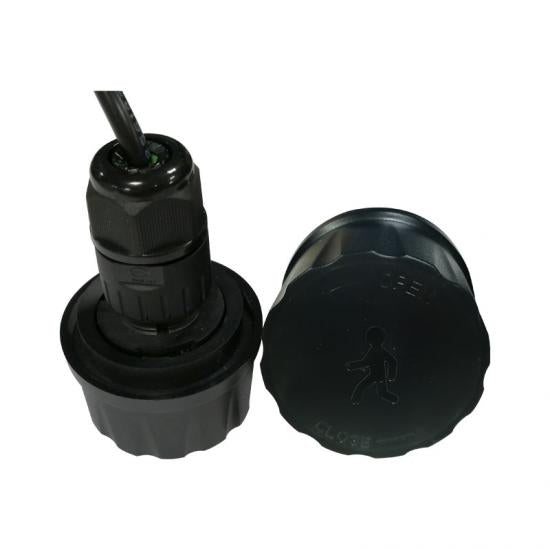

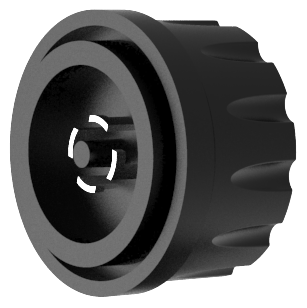

A built-in motion sensor (MS) enables automatic on/off or dimming operation based on occupancy, increasing energy savings and providing instant illumination for safety and security when movement is detected. The high-efficiency LED driver operates on 120–277VAC, 50/60 Hz and supports 0–10V dimming for integration with additional lighting controls or building automation systems.

Specifications

Part Number ALS-WP3-100W-5K-BZ-MS
Wattage 100W
Metal Halide Equivalent Replaces up to 300W
Lumens per Watt 130 Lm/w
Total Lumens 13000Lm
AC Input AC 120-277V
Housing Material Aluminum Alloy
Finish Dark Bronze Powder-Coat
Lens Type Prismatic Glass
Dimming 0-10V Dimmable
Driver WELED Power
LED Chips Philips Lumileds 3030
Color Temperature 5000K
CRI ≥70
Certifications UL, DLC 5.1 Premium
IP Rating IP65
Dimensions 14.96"x11.02"x9.45"
Weight 9.19Lbs
Luminary Life 50,000 Hour Rated
Warranty 5 Years

What kind of warranty do you offer on your LED lighting products?

American Lighting Systems offers a 5-year warranty on all LED fixtures, ensuring coverage for defects in materials or workmanship during the warranty period .

Do you provide free shipping?

Yes, free shipping is available for orders of $500 or more within the continental USA (excluding products over 4ft in length) .
